Description

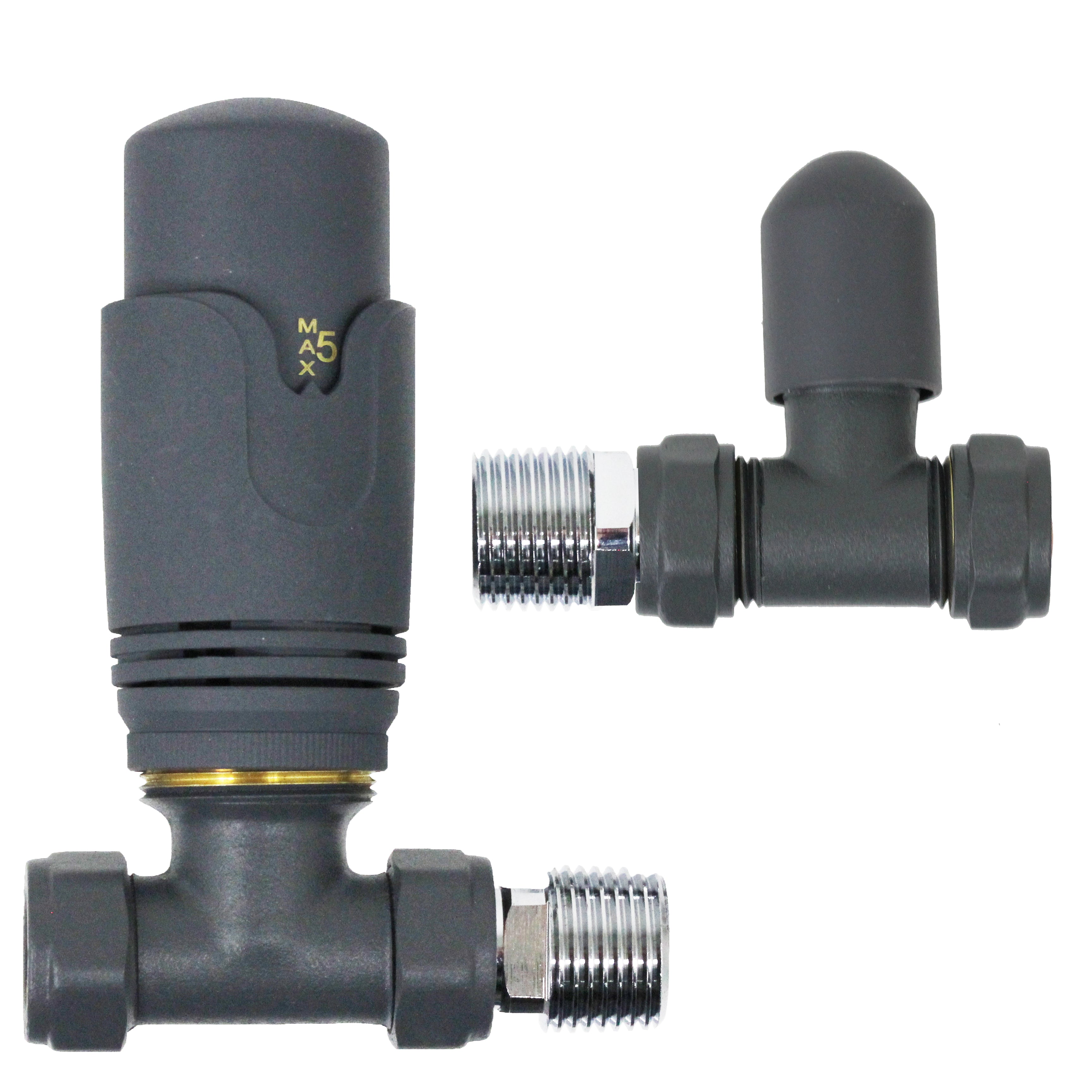

Anthracite Angled + Inline Thermostatic Radiator Valves Set (with Lockshield)
Thermostatic valves are typically used for regulating the fluid flow to the radiators of central heating systems and / or heated towel rails.
They are provided with a regulating element which automatically controls the opening of the valve to regulate the ambient temperature of the room. The number on the valve corresponds to a specific air temperature. Once you have selected a number, this thermostatic valve will maintain this temperature. This prevents unwanted temperature rises and achieves considerable energy savings. These products exceed the requirements of EN 215 standard.
Specification:
Compact Design
1/2" BSP MI outlet

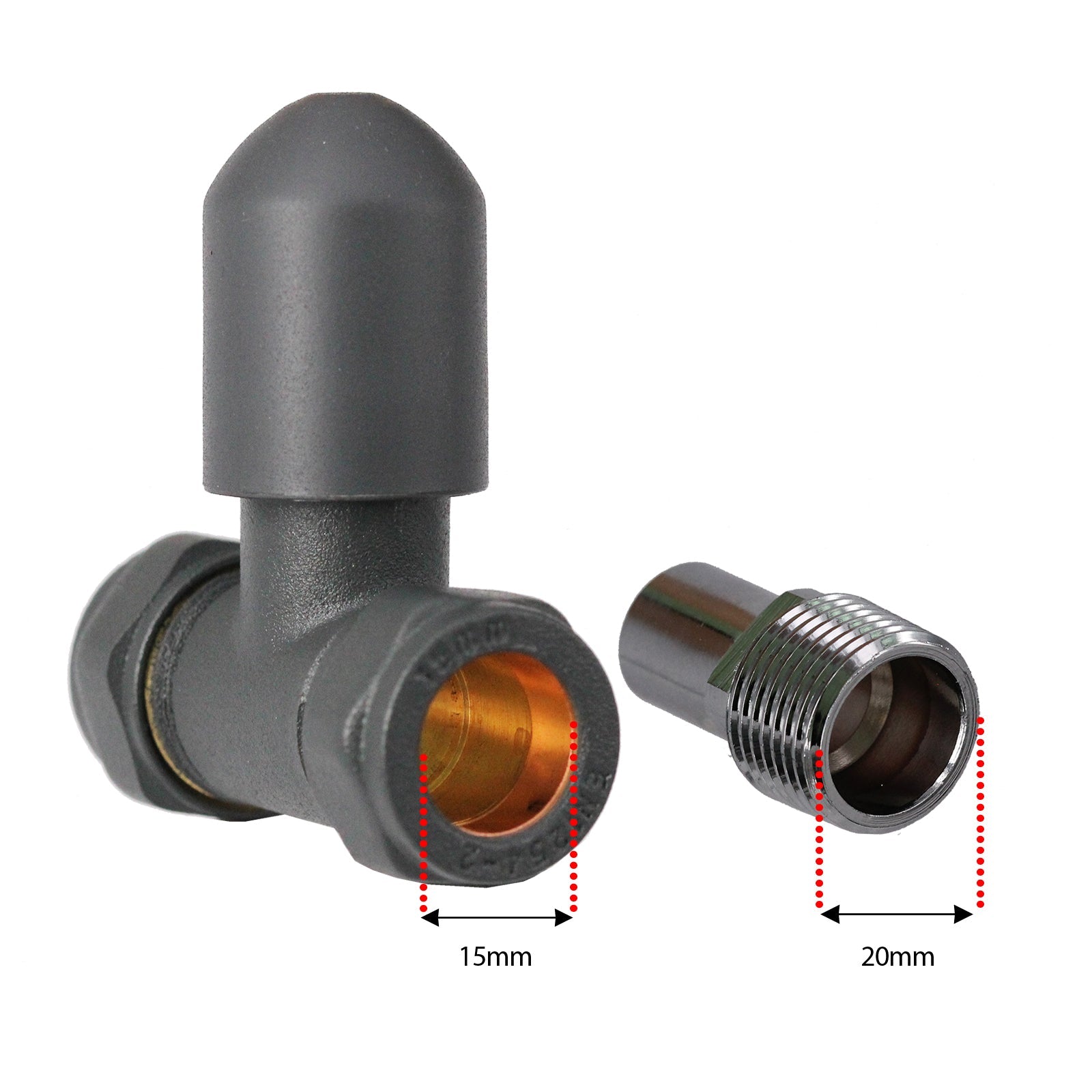

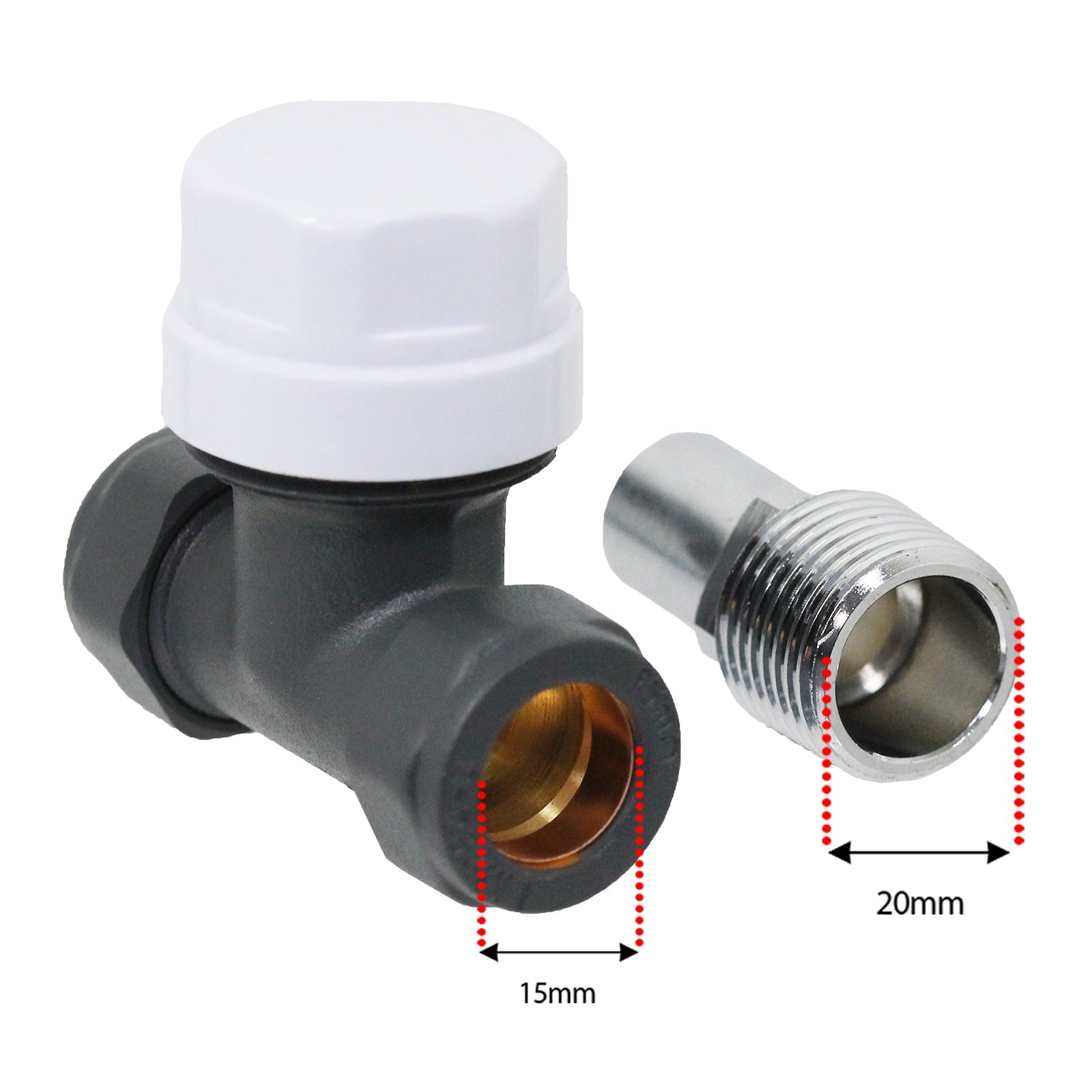

Connections: 15mm inlet
Colour: Anthracite
Thermostatic temperature control
Lock shield valve is connected to the return

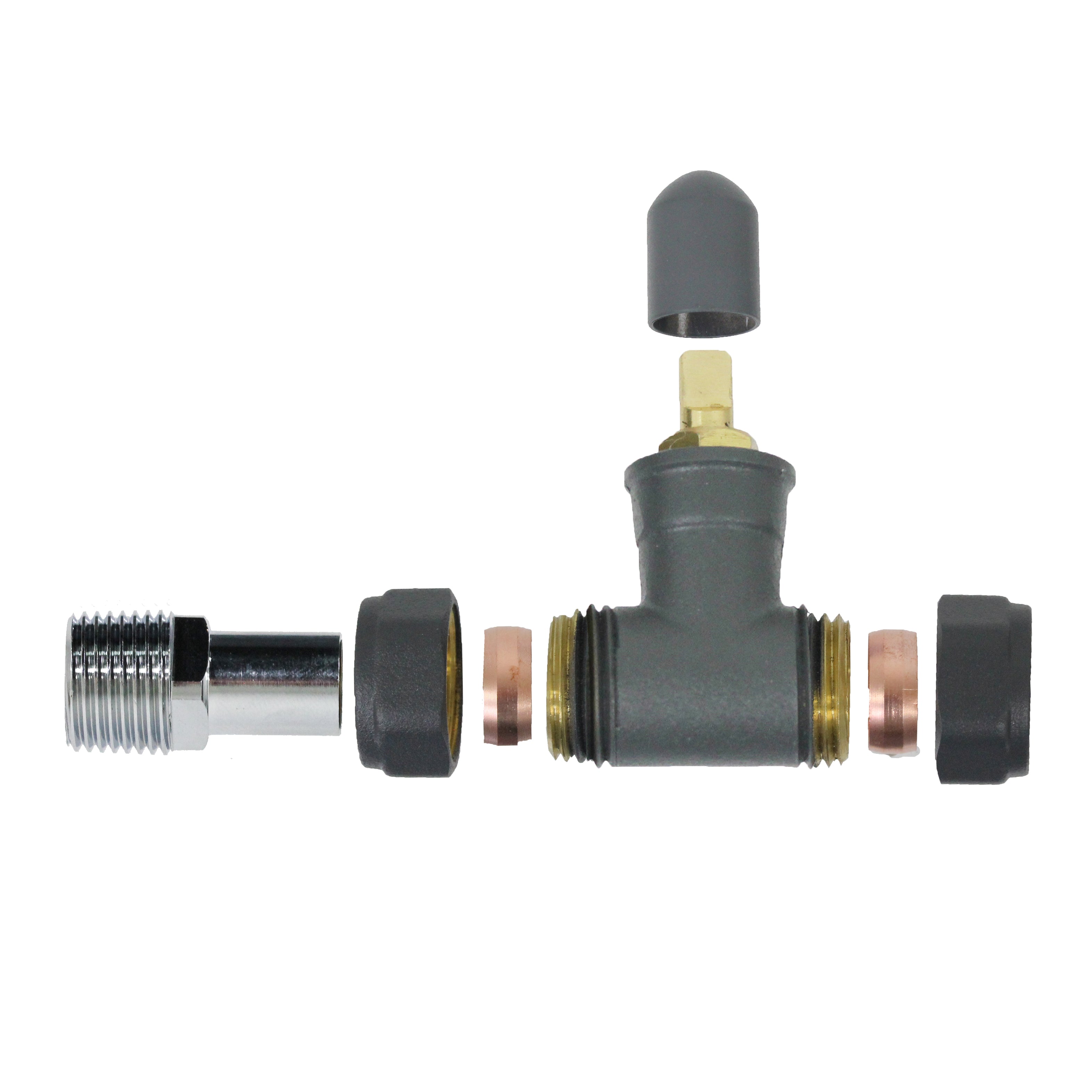

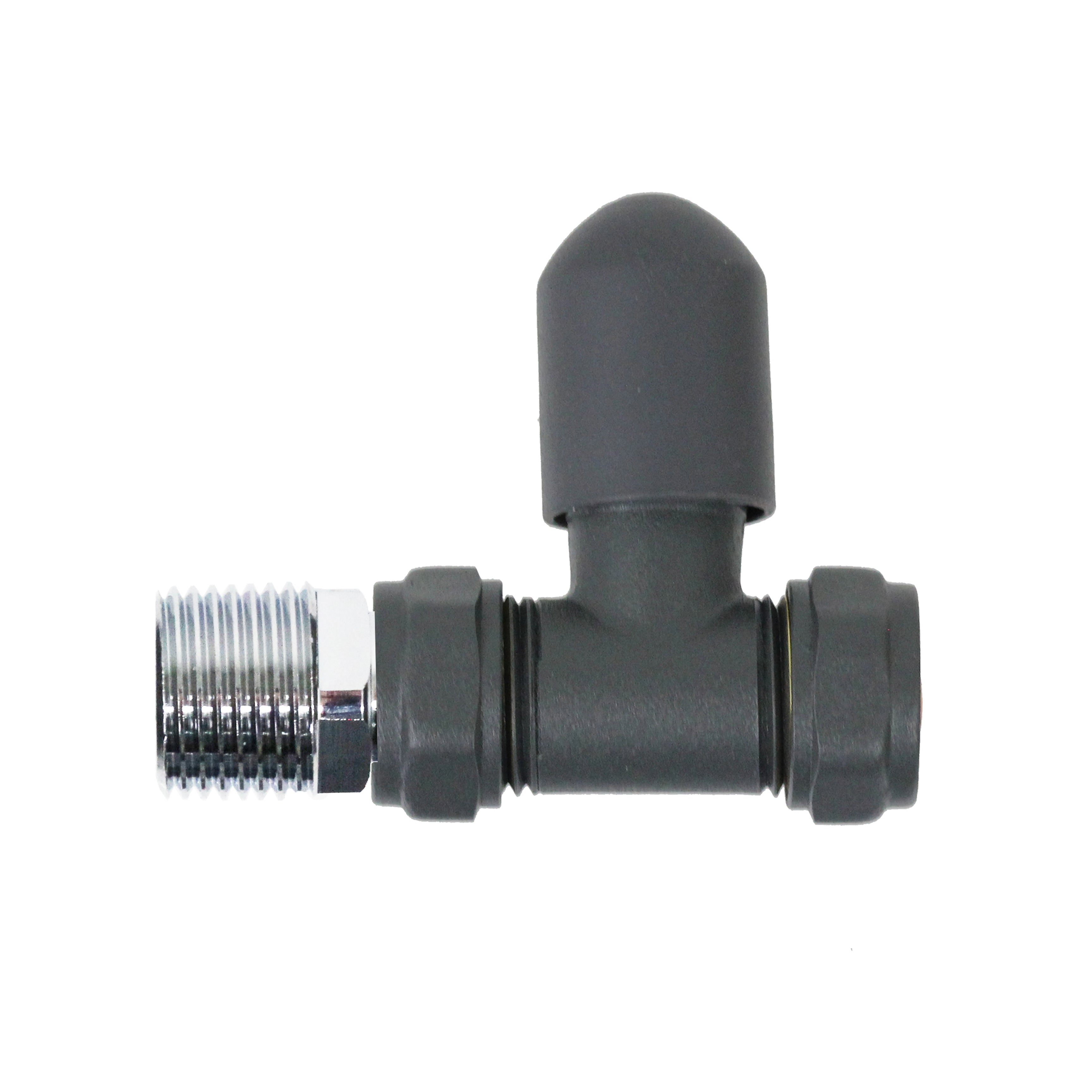

Inline radiator valves with standard 15mm compression fittings
Compatible with radiators and heated towel rails
Durable solid brass construction with anthracite powder coat finish
Features standard ½” threads on each valve
Supplied as a pair of valves
Thermostatic Head and Reversible bi-Directional Body
Built in sensor with Liquid Element
Lock shield valve is connected to the return
Frost Protection
Pipe Material: Solid Brass
Smooth Operation with High Quality Components
Graduated Scale from 0 to 5 corresponding to temperature ranges 7°C - 32°C
Fully Tested 10bar
Max Pressure Drop 46 Ft.W.G
Max Flow Temperature 110°C
Sensor Type: Liquid
Hysteresis: 0.2K
Differential Pressure Effect: 0.15K
Effect Static Pressure: 0.3K
Can Be mounted Horizontally or Vertically
1/2" BSP Standard 15mm compression inlet
Control Temperature Range
0: 7°C
1: 12°C
2: 16°C
3: 20°C
4: 24°C
5: 28°C
Pack contains: 1 x thermostatic (Angled) and 1 x manual inline radiator valve set.
If you require the Anthracite Straight version, please Click Here

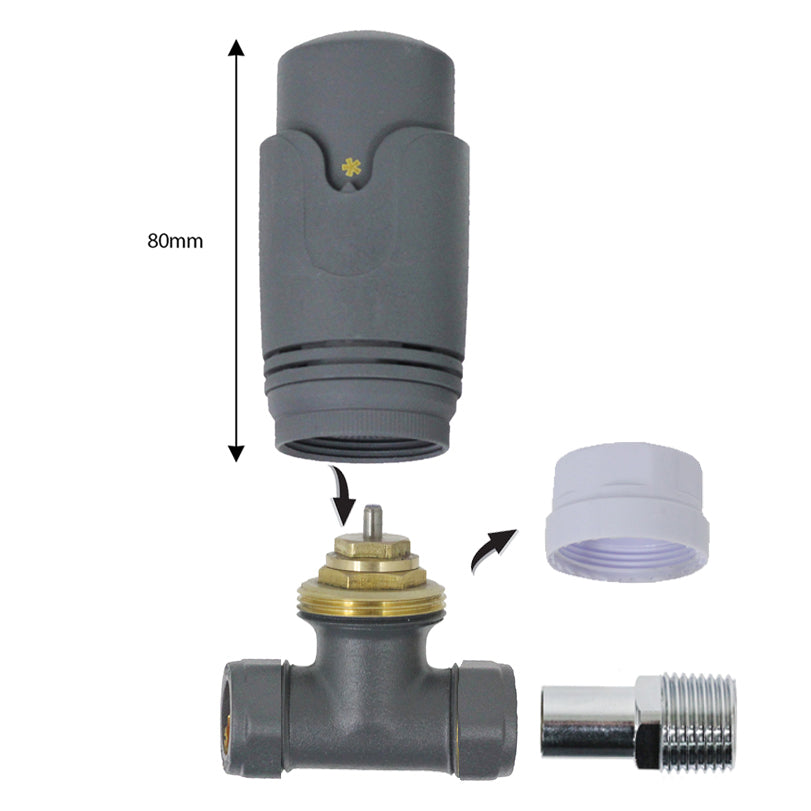

Installation Instructions:
1. Remove "Shut off cap"
2. Rotate Thermostat head onto valve body with pointer visible
3. Position thermostat head onto valve body with pointer visible
4. Tighten the locking ring fully
5. Set the temperature to your desired level.
Thermostatic valves are typically used for regulating the fluid flow to the radiators of central heating systems and / or heated towel rails.
They are provided with a regulating element which automatically controls the opening of the valve to regulate the ambient temperature of the room. The number on the valve corresponds to a specific air temperature. Once you have selected a number, this thermostatic valve will maintain this temperature. This prevents unwanted temperature rises and achieves considerable energy savings. These products exceed the requirements of EN 215 standard.
Specification:
Compact Design
1/2" BSP MI outlet
Connections: 15mm inlet
Colour: Anthracite
Thermostatic temperature control
Lock shield valve is connected to the return
Inline radiator valves with standard 15mm compression fittings
Compatible with radiators and heated towel rails
Durable solid brass construction with anthracite powder coat finish
Features standard ½” threads on each valve
Supplied as a pair of valves
Thermostatic Head and Reversible bi-Directional Body
Built in sensor with Liquid Element
Lock shield valve is connected to the return
Frost Protection
Pipe Material: Solid Brass
Smooth Operation with High Quality Components
Graduated Scale from 0 to 5 corresponding to temperature ranges 7°C - 32°C
Fully Tested 10bar
Max Pressure Drop 46 Ft.W.G
Max Flow Temperature 110°C
Sensor Type: Liquid
Hysteresis: 0.2K
Differential Pressure Effect: 0.15K
Effect Static Pressure: 0.3K
Can Be mounted Horizontally or Vertically
1/2" BSP Standard 15mm compression inlet
Control Temperature Range
0: 7°C
1: 12°C
2: 16°C
3: 20°C
4: 24°C
5: 28°C
Pack contains: 1 x thermostatic (Angled) and 1 x manual inline radiator valve set.
If you require the Anthracite Straight version, please Click Here
Installation Instructions:
1. Remove "Shut off cap"
2. Rotate Thermostat head onto valve body with pointer visible
3. Position thermostat head onto valve body with pointer visible
4. Tighten the locking ring fully
5. Set the temperature to your desired level.
