Description

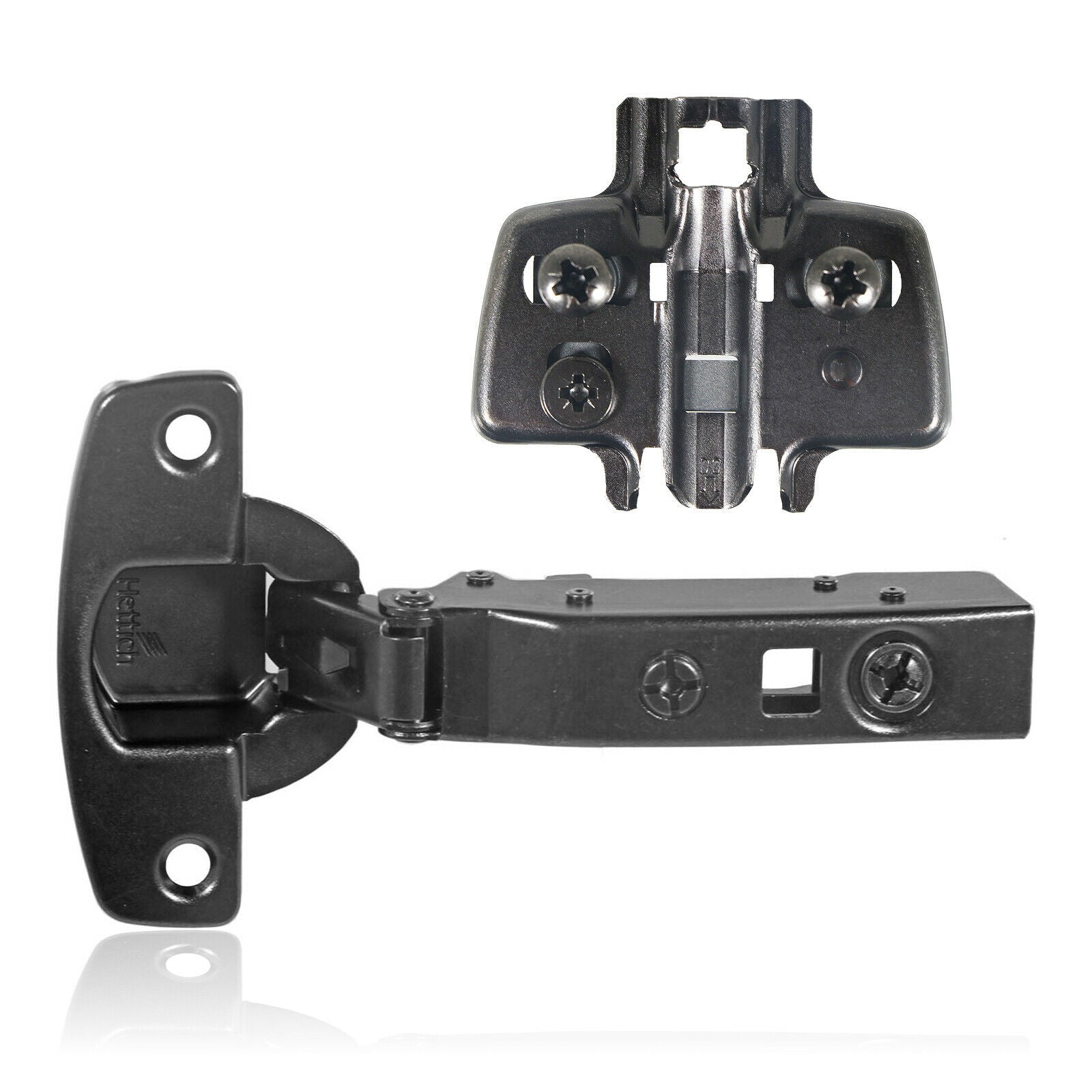

Genuine Hettich Sensys 110°Hinge without Self Closing Feature (Sensys 8675) in Obsidian Black + 5mm Mount Plate
Brand new, genuine original 110°hinge without self-closing feature and 5mm Mount Plate
Hinge:

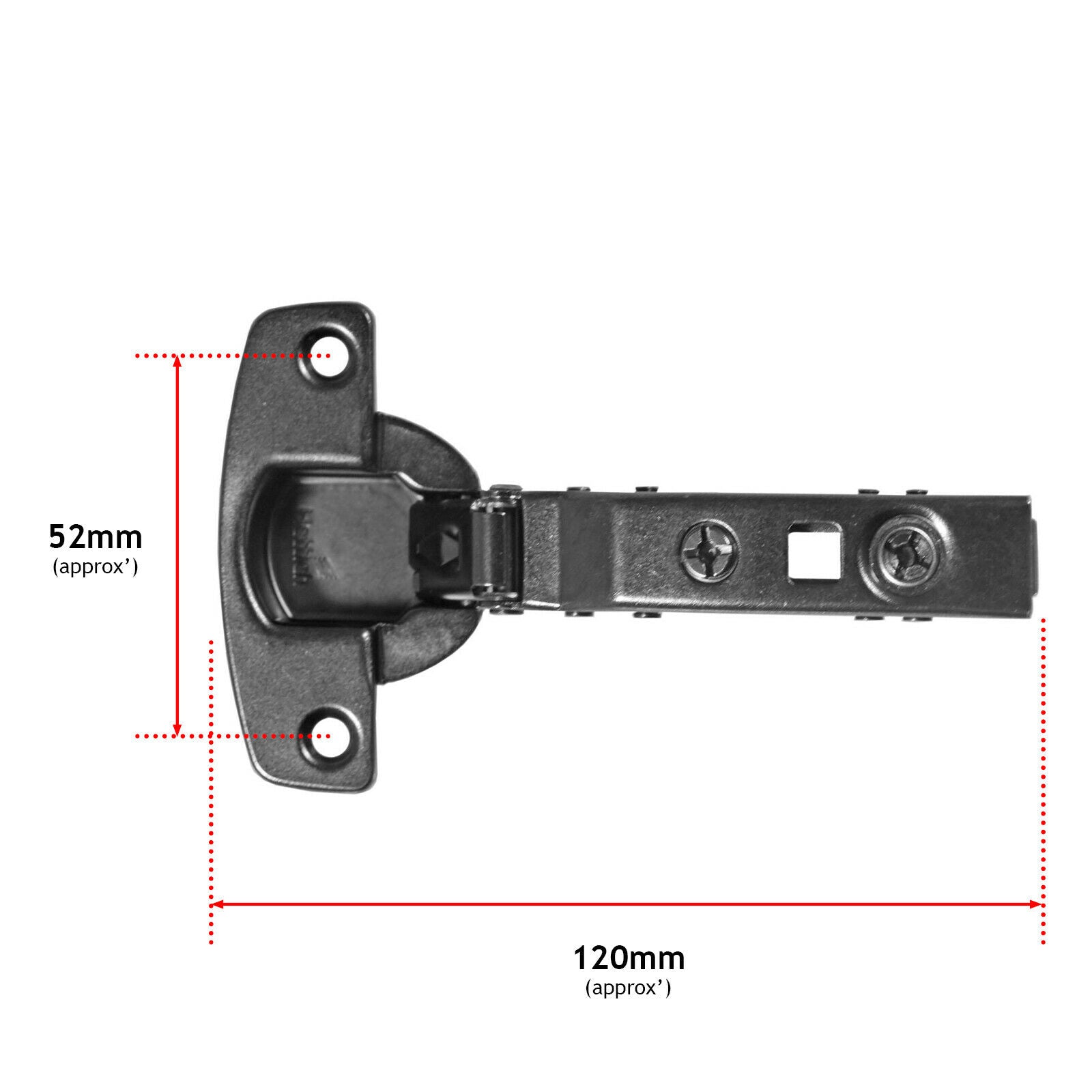

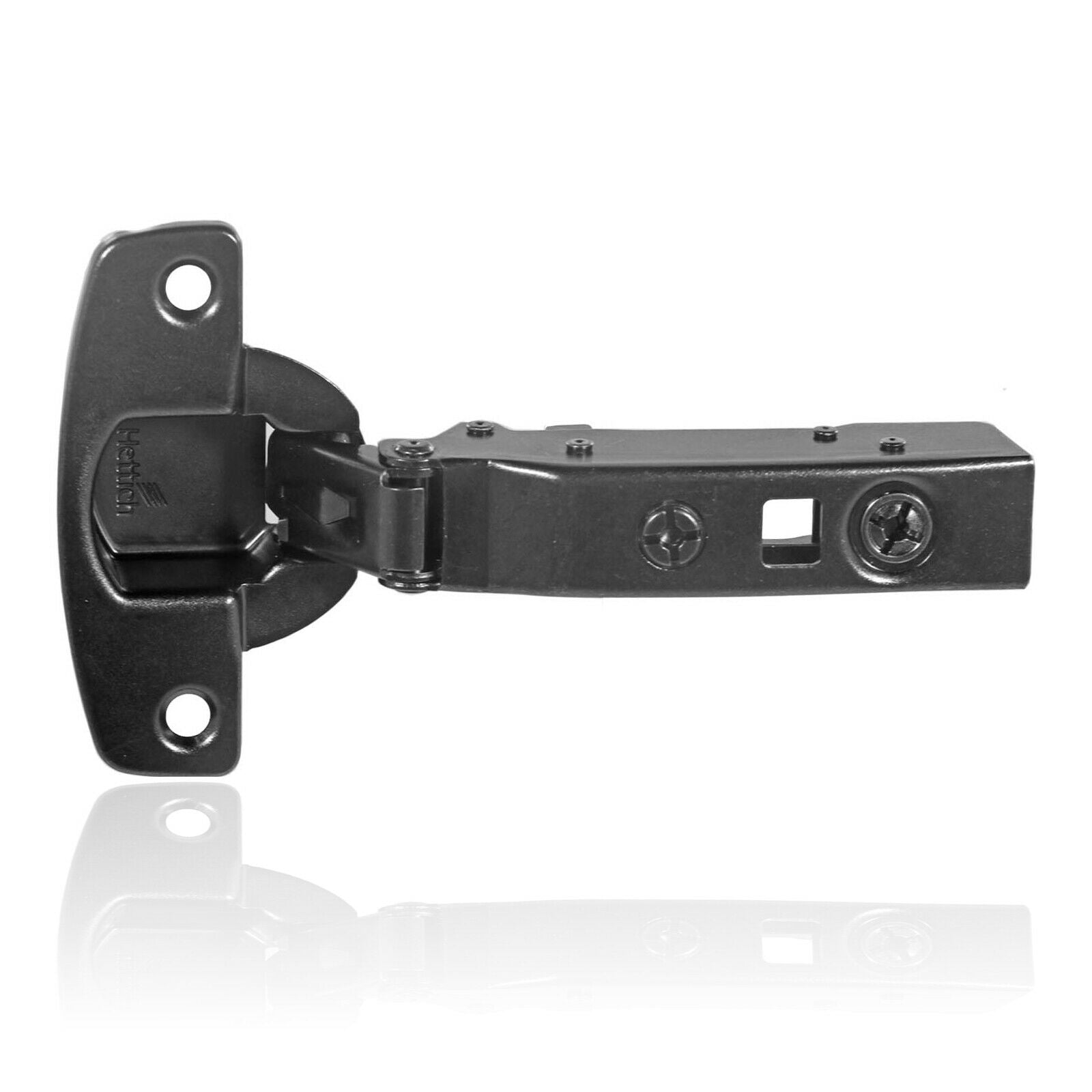

Sensys 110° hinge
Without Silent System, without self-closing feature, for handleless applications (Sensys 8675)

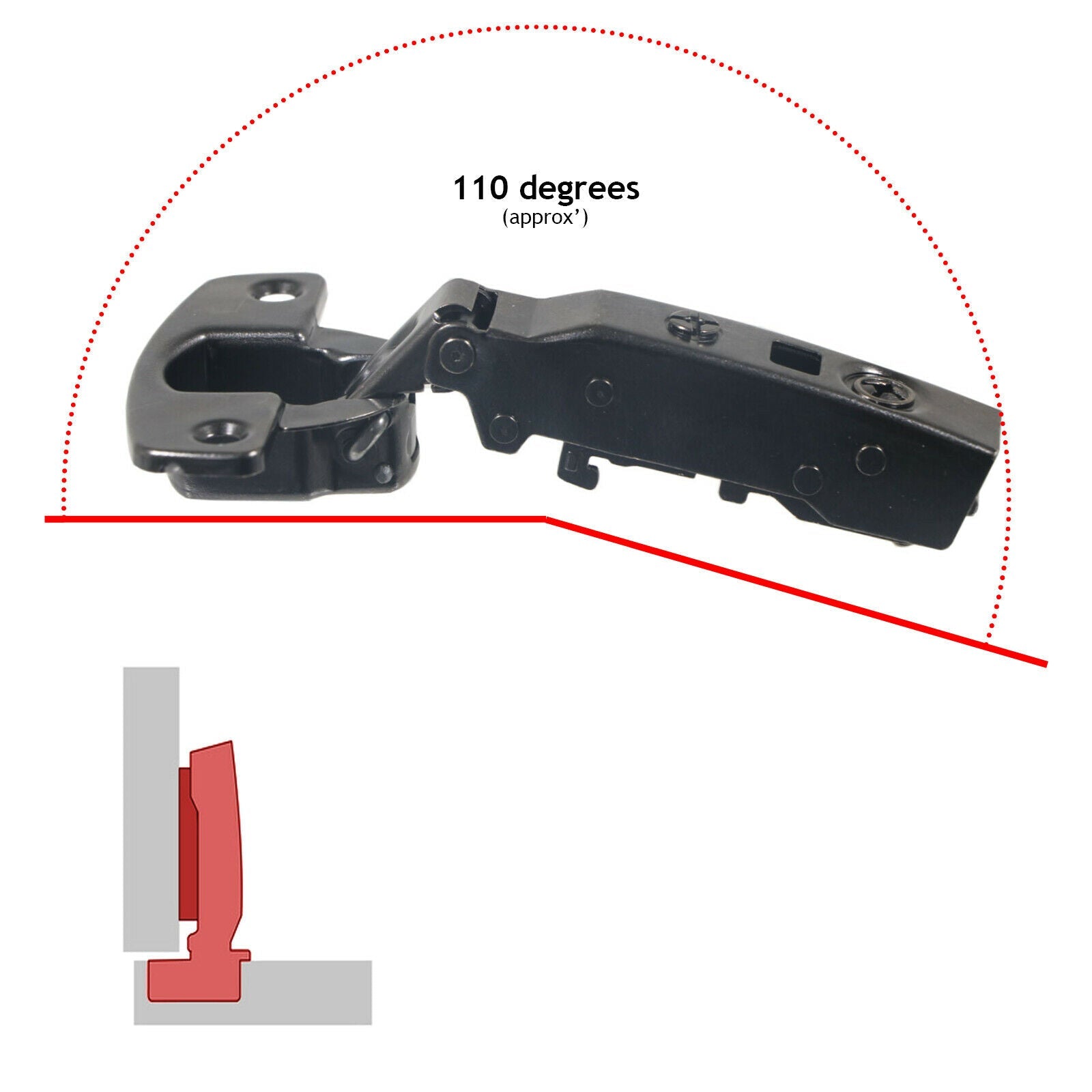

Opening angle 110°
For door thickness 15 - 24 mm
Door mounting option overlay

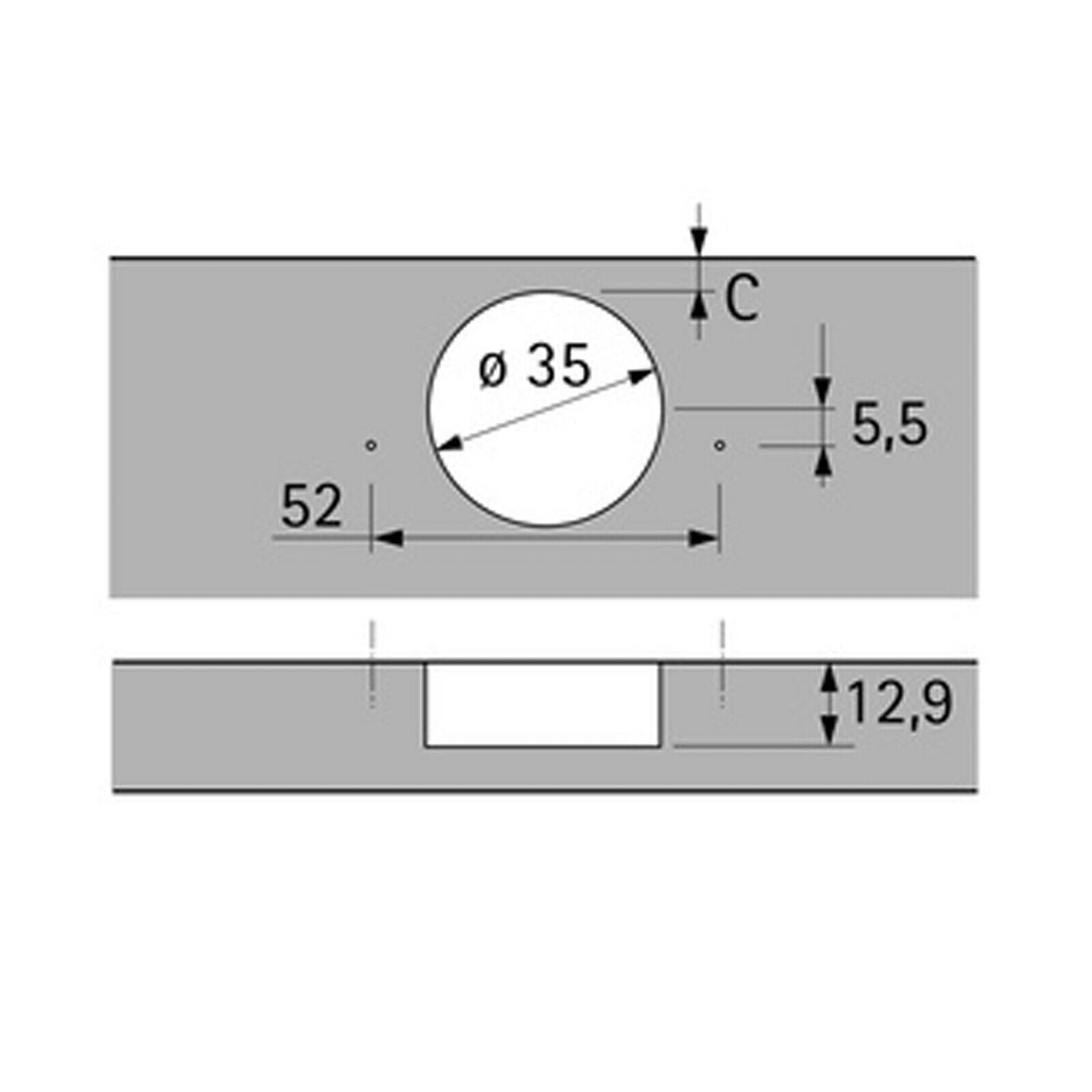

Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Cup version: TH 52
Base: 12.5 mm
Cup diameter: 35 mm
Stay closed function: No
Steel in obsidian black finish

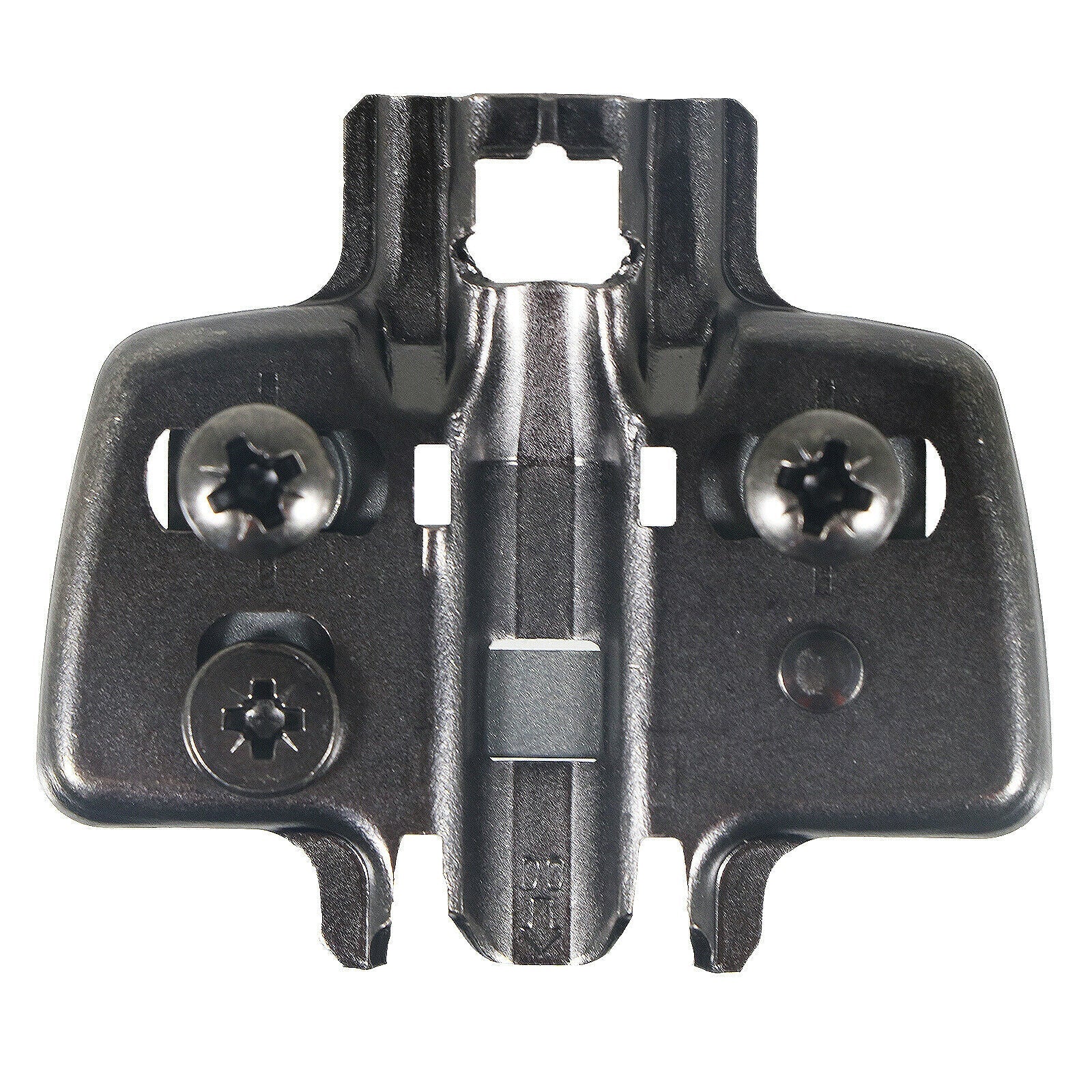

Mount Plate:
Cross mounting plate with direct height adjustment
For Sensys

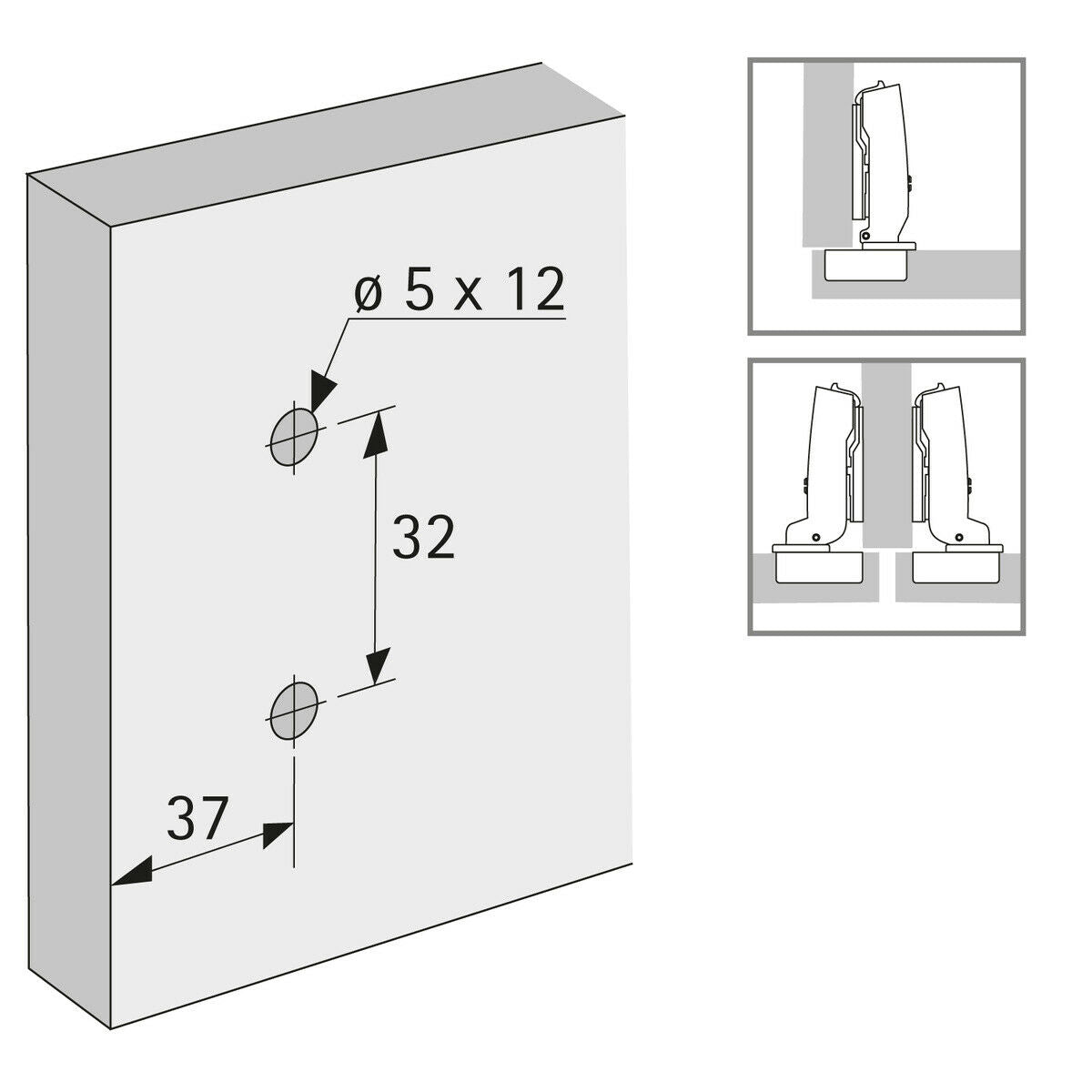

For Hole line 37 x 32 mm
Distance/Height (distance of groove from base): 5 mm
Adjustment range + 2 mm / - 2 mm
Steel in obsidian black finish
Brand new, genuine original 110°hinge without self-closing feature and 5mm Mount Plate
Hinge:
Sensys 110° hinge
Without Silent System, without self-closing feature, for handleless applications (Sensys 8675)
Opening angle 110°
For door thickness 15 - 24 mm
Door mounting option overlay
Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Cup version: TH 52
Base: 12.5 mm
Cup diameter: 35 mm
Stay closed function: No
Steel in obsidian black finish
Mount Plate:
Cross mounting plate with direct height adjustment
For Sensys
For Hole line 37 x 32 mm
Distance/Height (distance of groove from base): 5 mm
Adjustment range + 2 mm / - 2 mm
Steel in obsidian black finish
