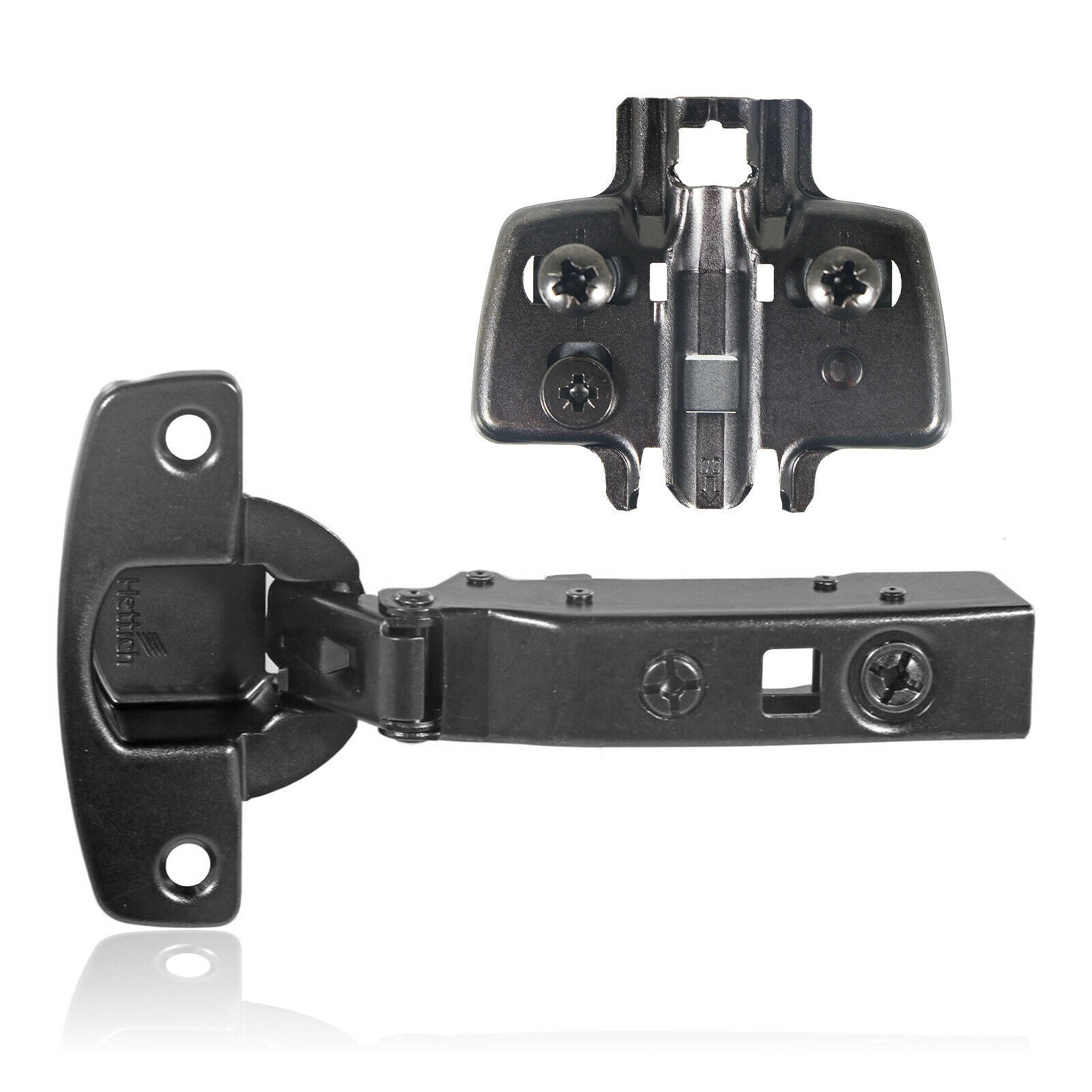

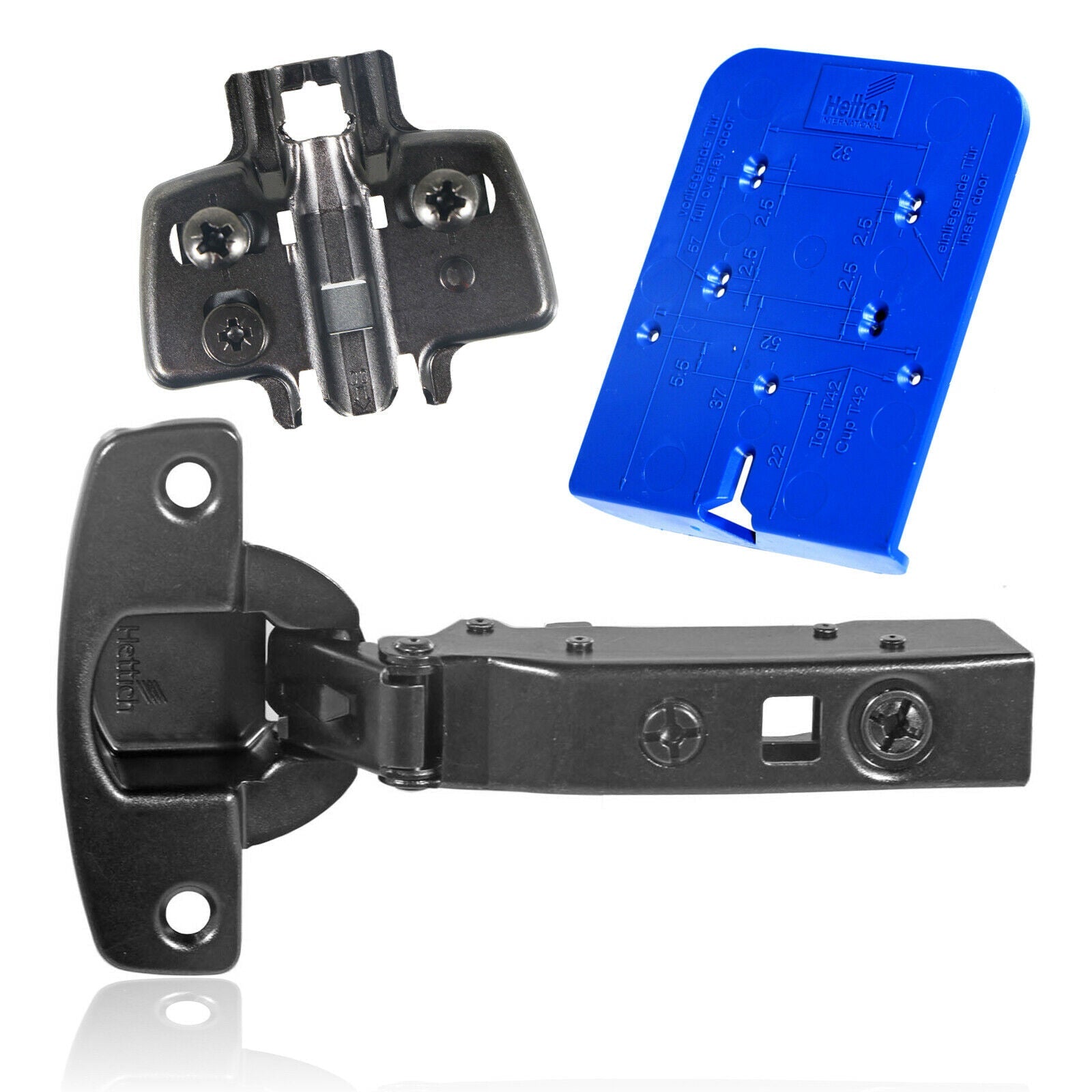

HETTICH Hinge Sensys 110 Non Self-Closing Obsidian Black + 5mm Mount Plate + Jig

Genuine Hettich Sensys 110°Hinge without Self Closing Feature (Sensys 8675) in Obsidian Black + 5mm Mount Plate + Jig

Brand new, genuine original 110°hinge with out self closing feature, 5mm Mount Plate and Drill Template Jig

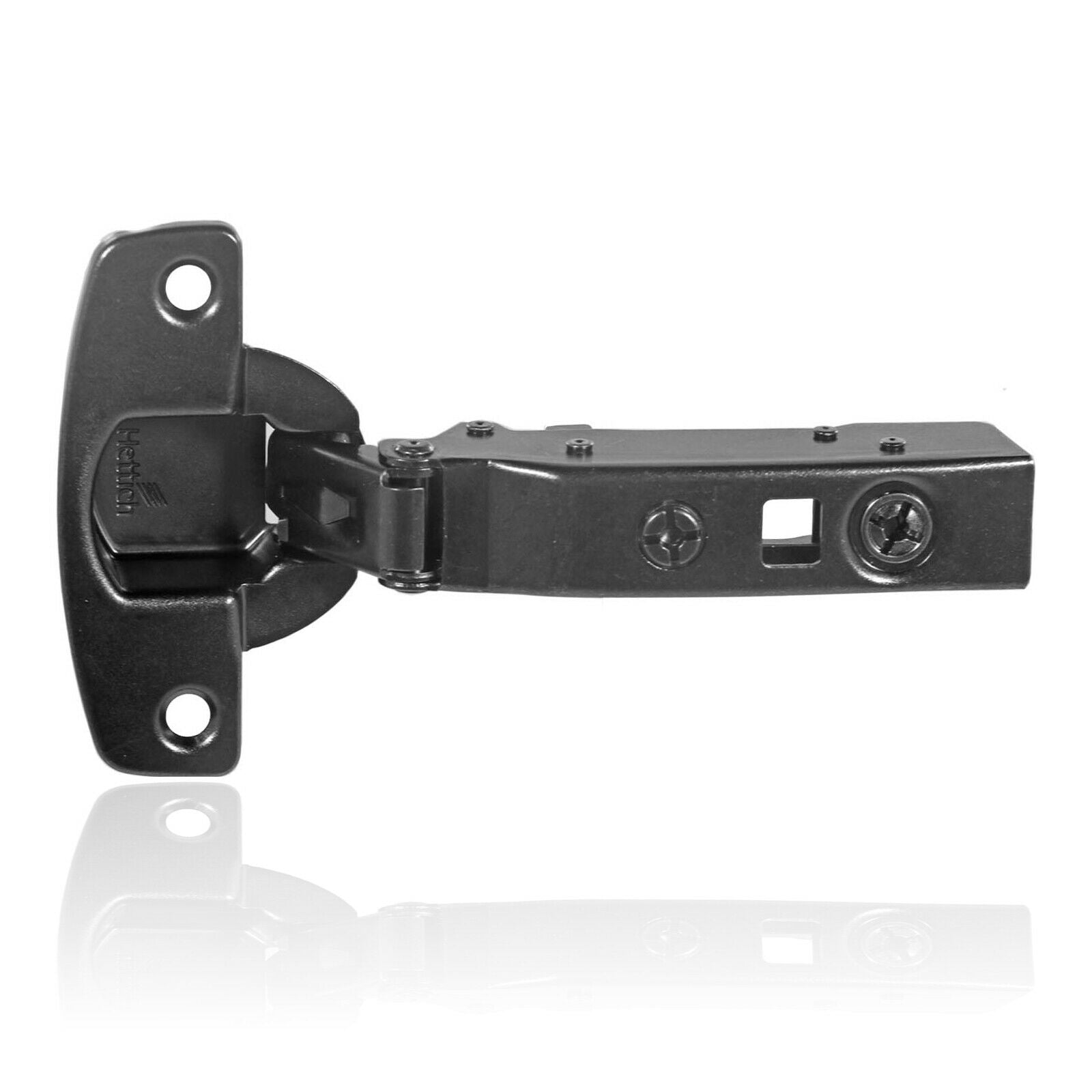

Hinge:
Sensys 110° hinge
Without Silent System, without self closing feature, for handleless applications (Sensys 8675)

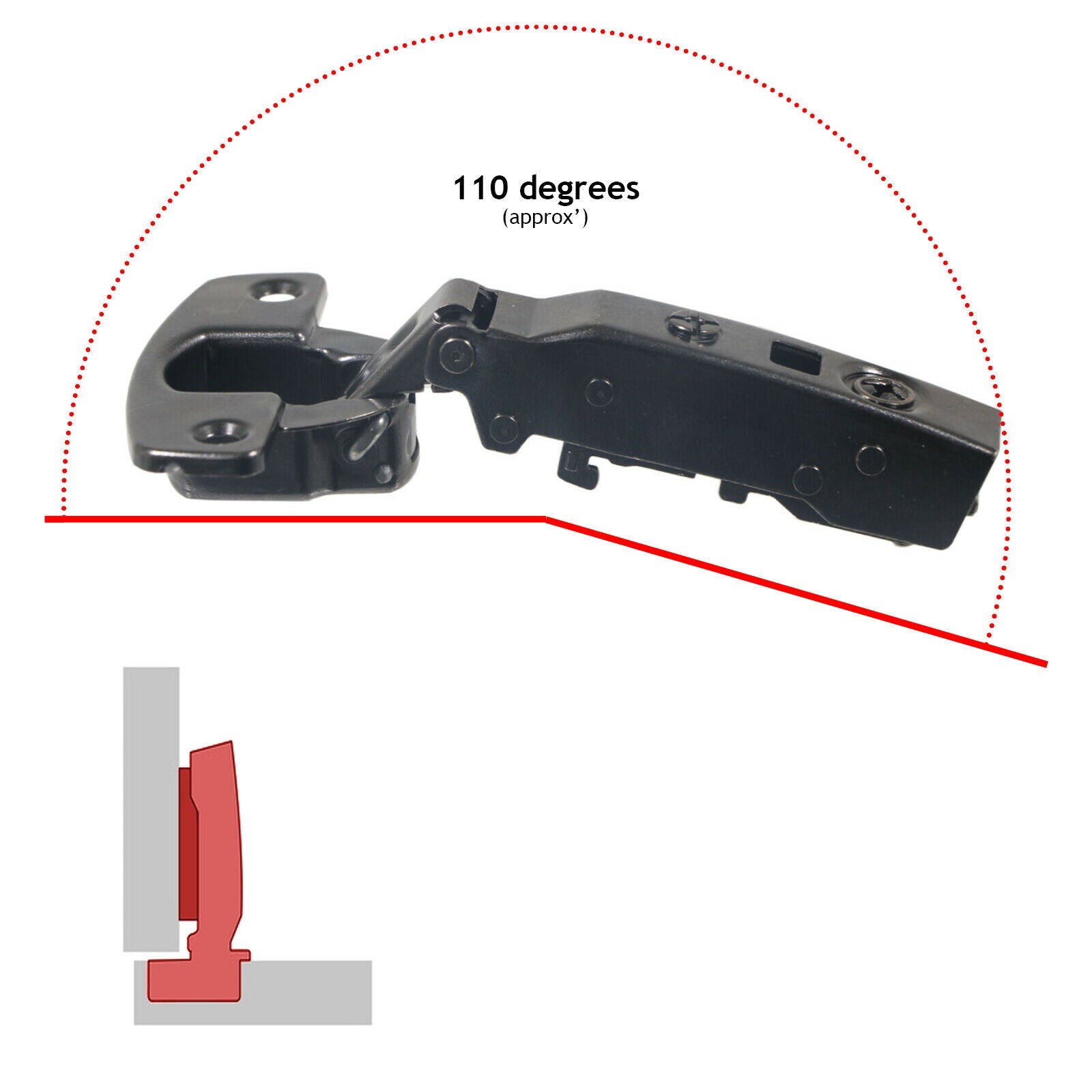

Opening angle 110°
For door thickness 15 - 24 mm
Door mounting option overlay

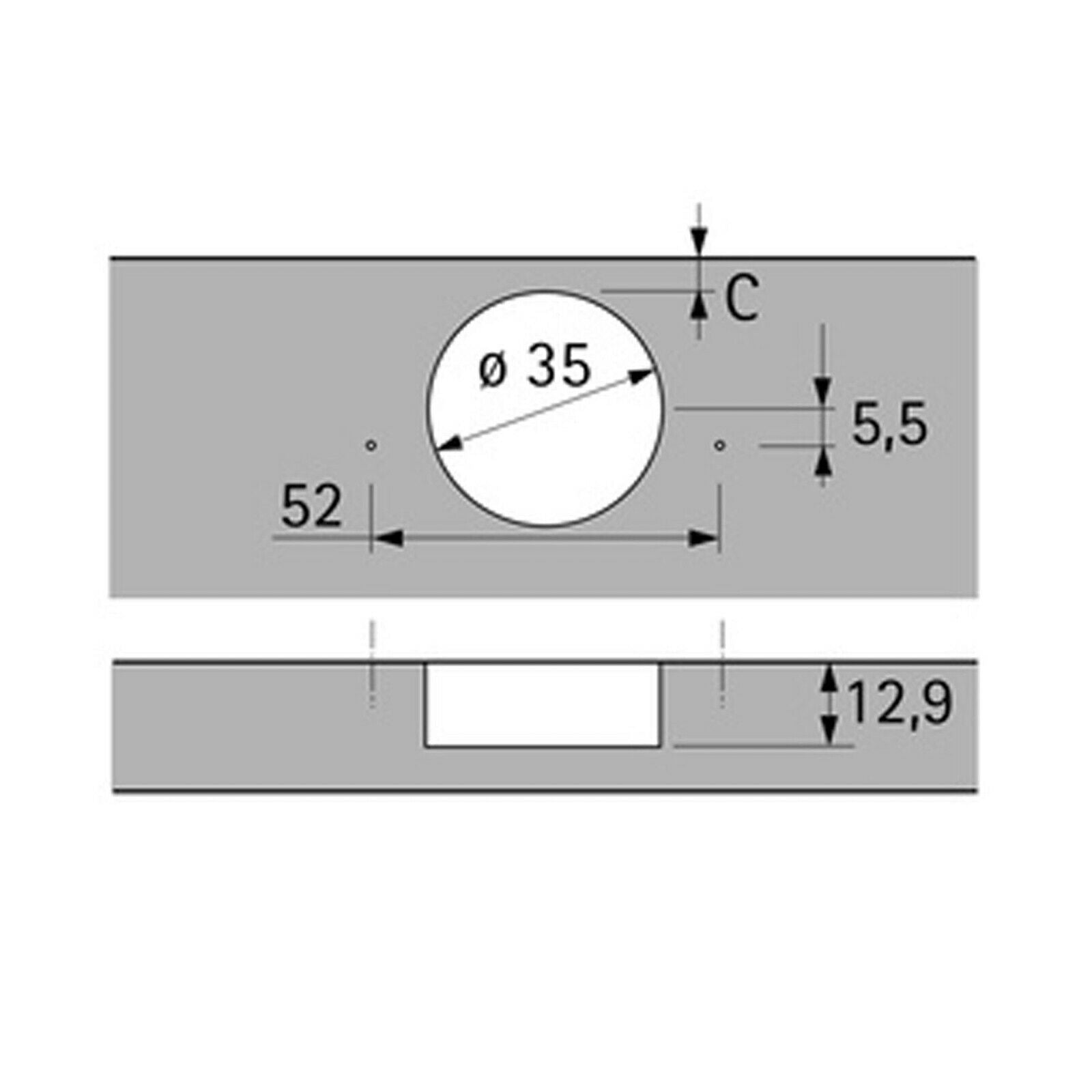

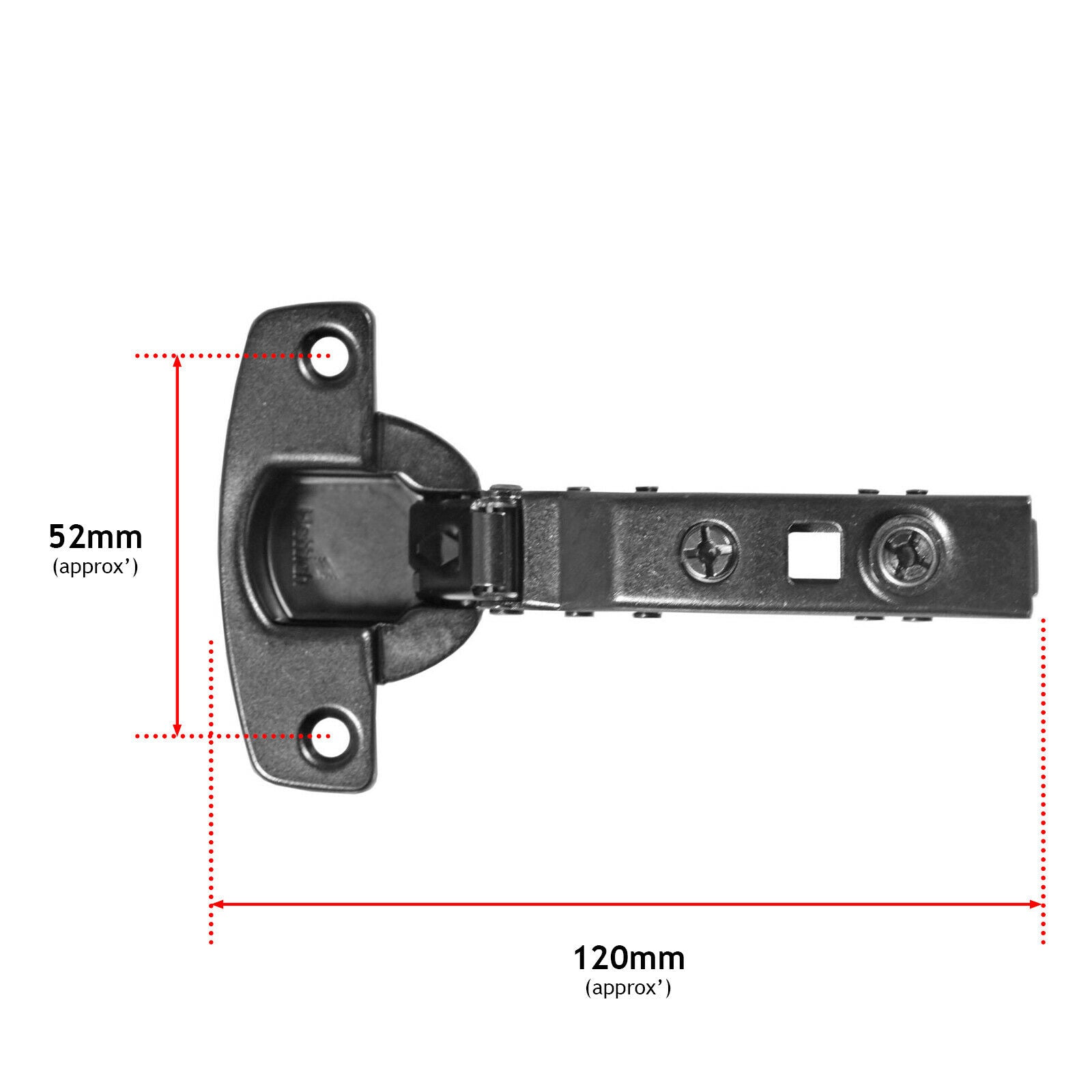

Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Cup version: TH 52
Base: 12.5 mm
Cup diameter: 35 mm
Stay closed function: No
Steel in obsidian black finish

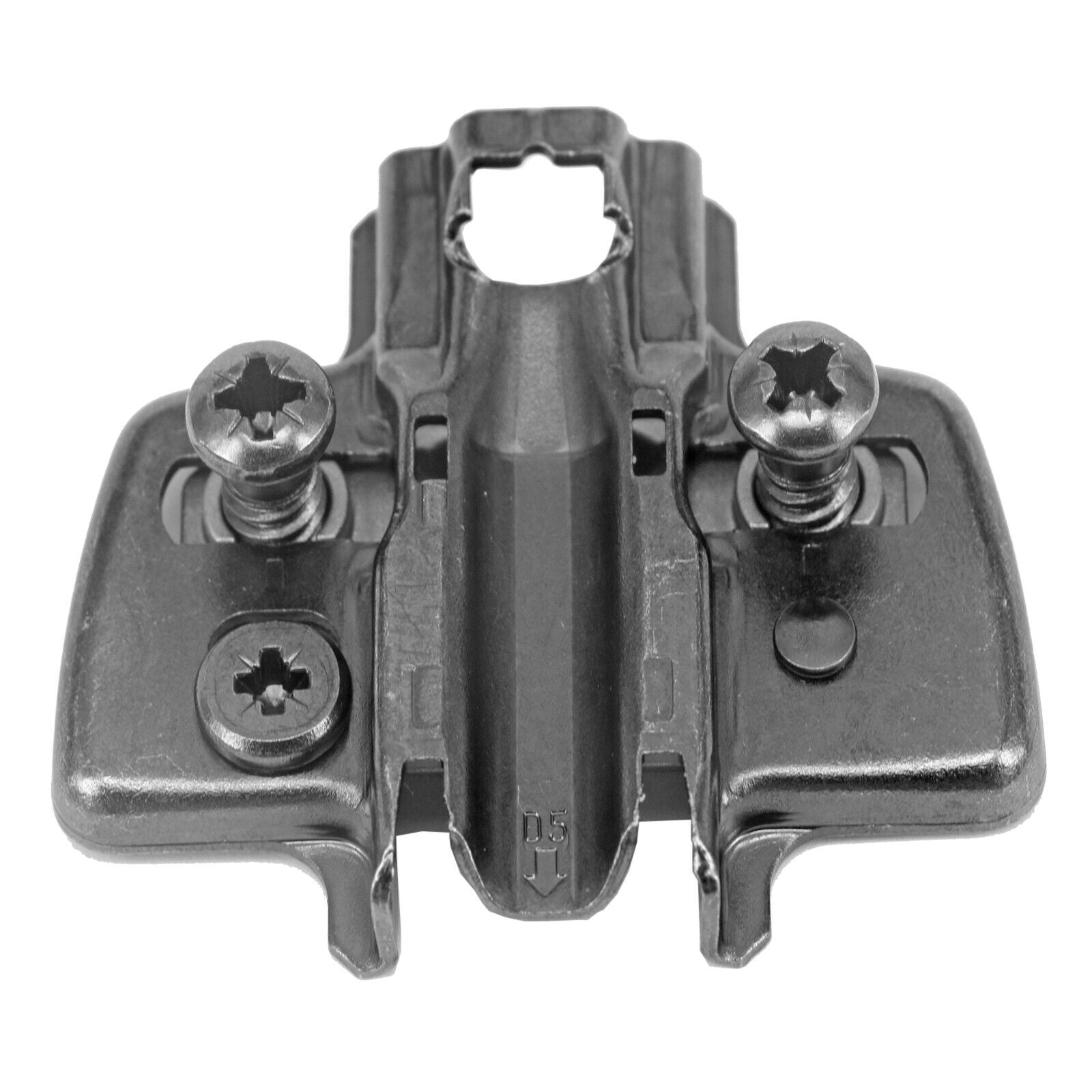

Mount Plate:
Cross mounting plate with direct height adjustment
For Sensys

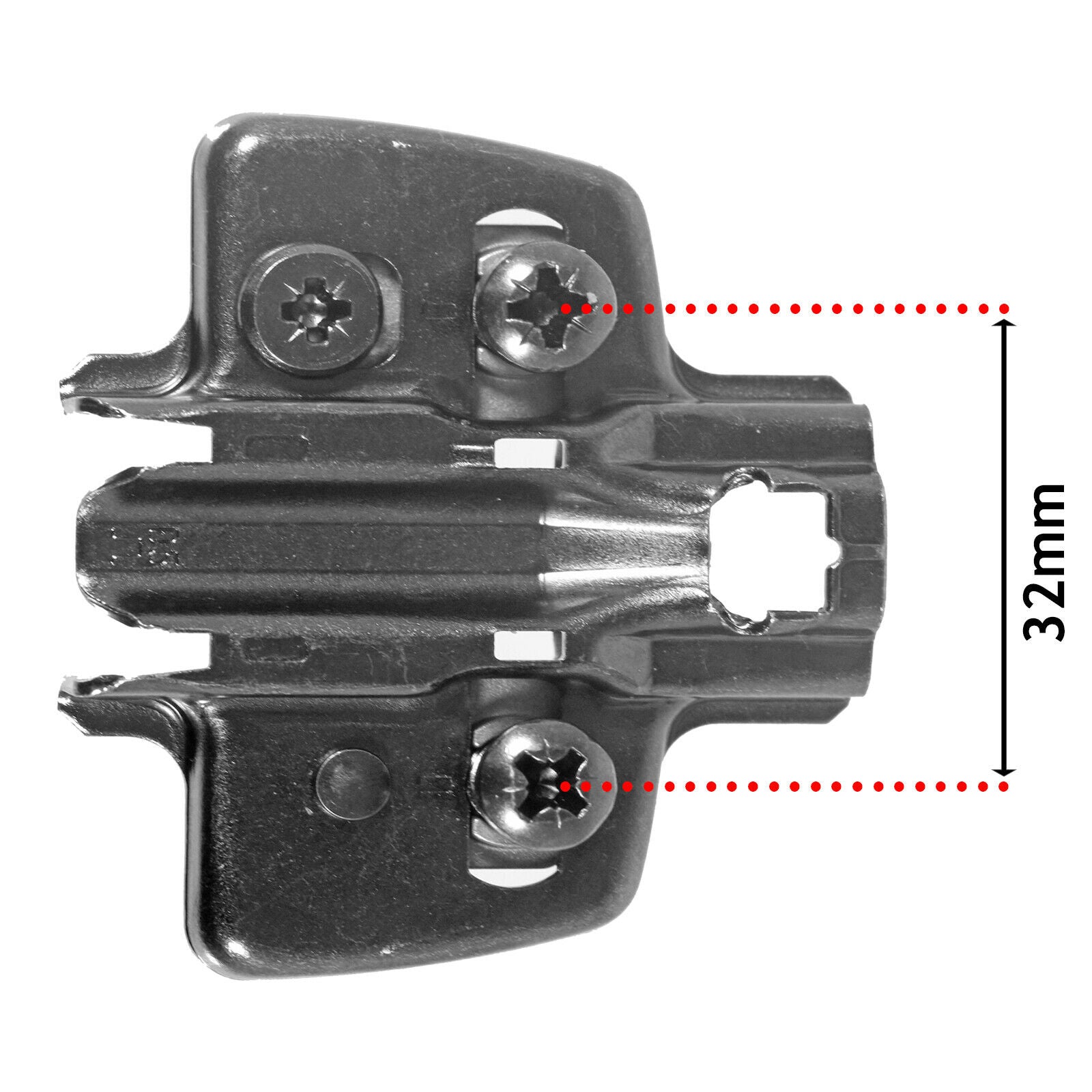

For Hole line 37 x 32 mm
Distance/Height (distance of groove from base): 5 mm
Adjustment range + 2 mm / - 2 mm
Steel in obsidian black finish

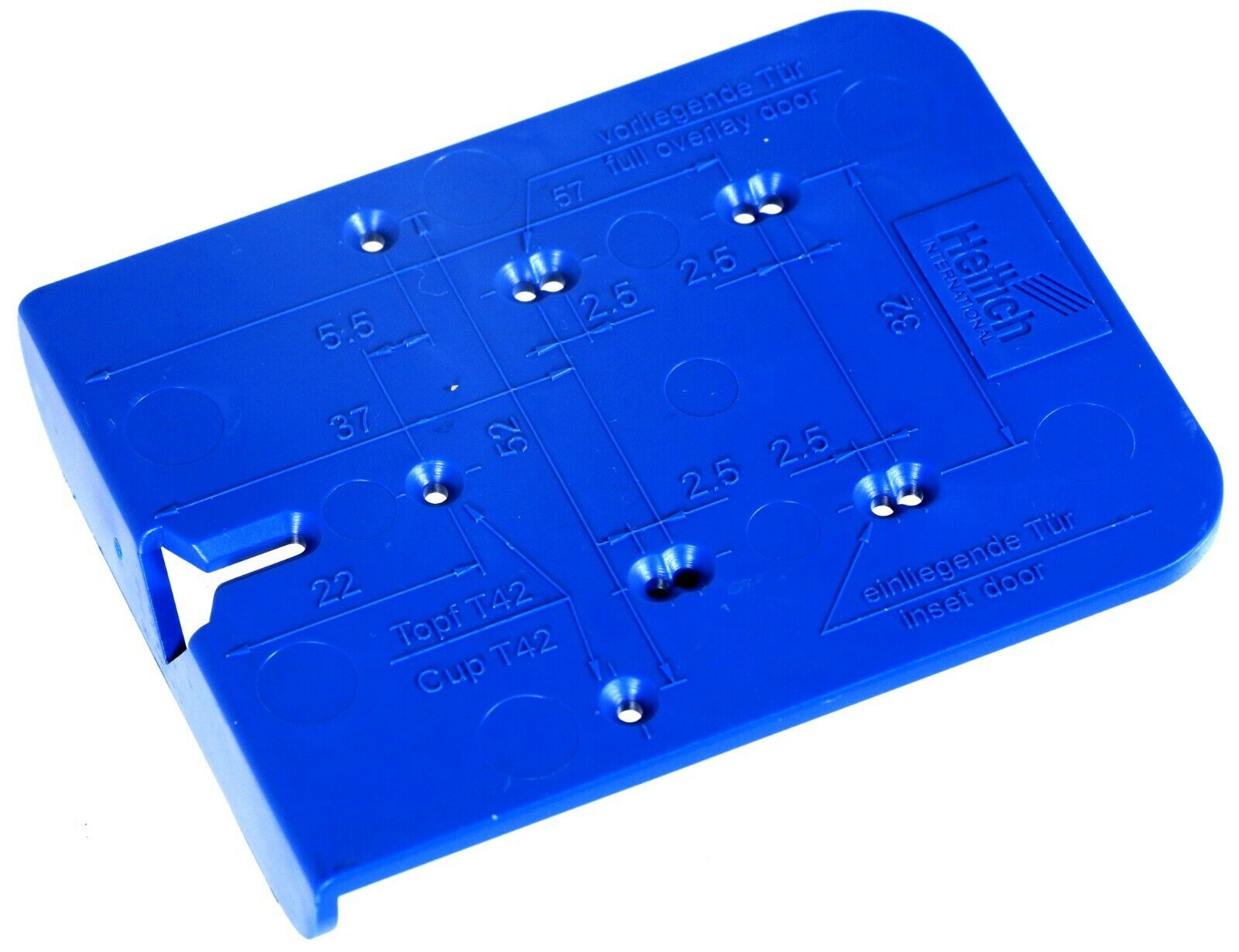

Drill Template Jig:
Simple hole marking jig: the perfect aid for on site assembly whenever one or the other fitting has to be mounted professionally without the use of large machinery
Blue plastic
Ideal for use on site on construction sites.
For present, half and inset fronts.
For grinding the drilling positions of hinges (drill image TH) and cross mounting plates.
