M6 index plunger spring loaded ring pull retractable pin stainless steel 4mm

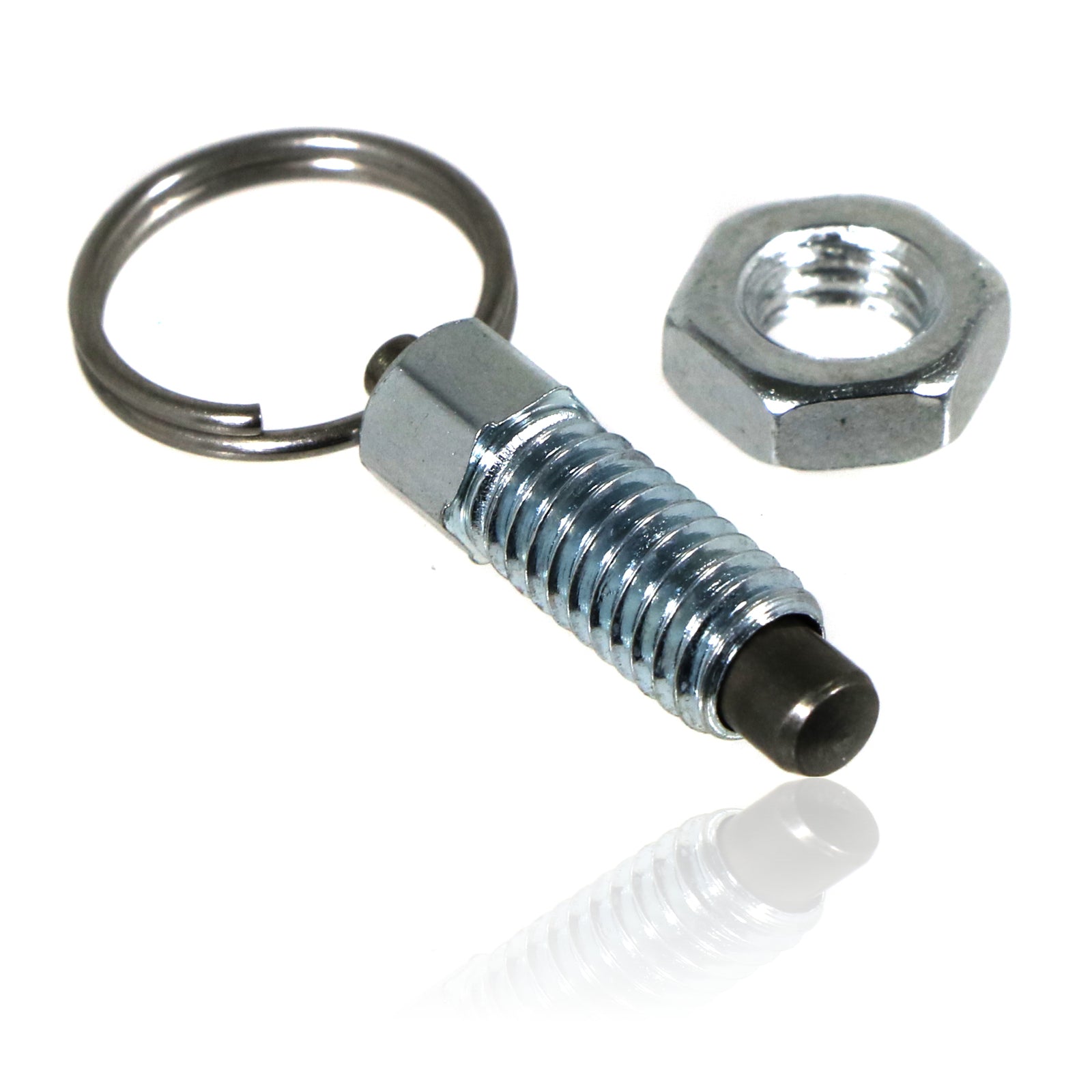

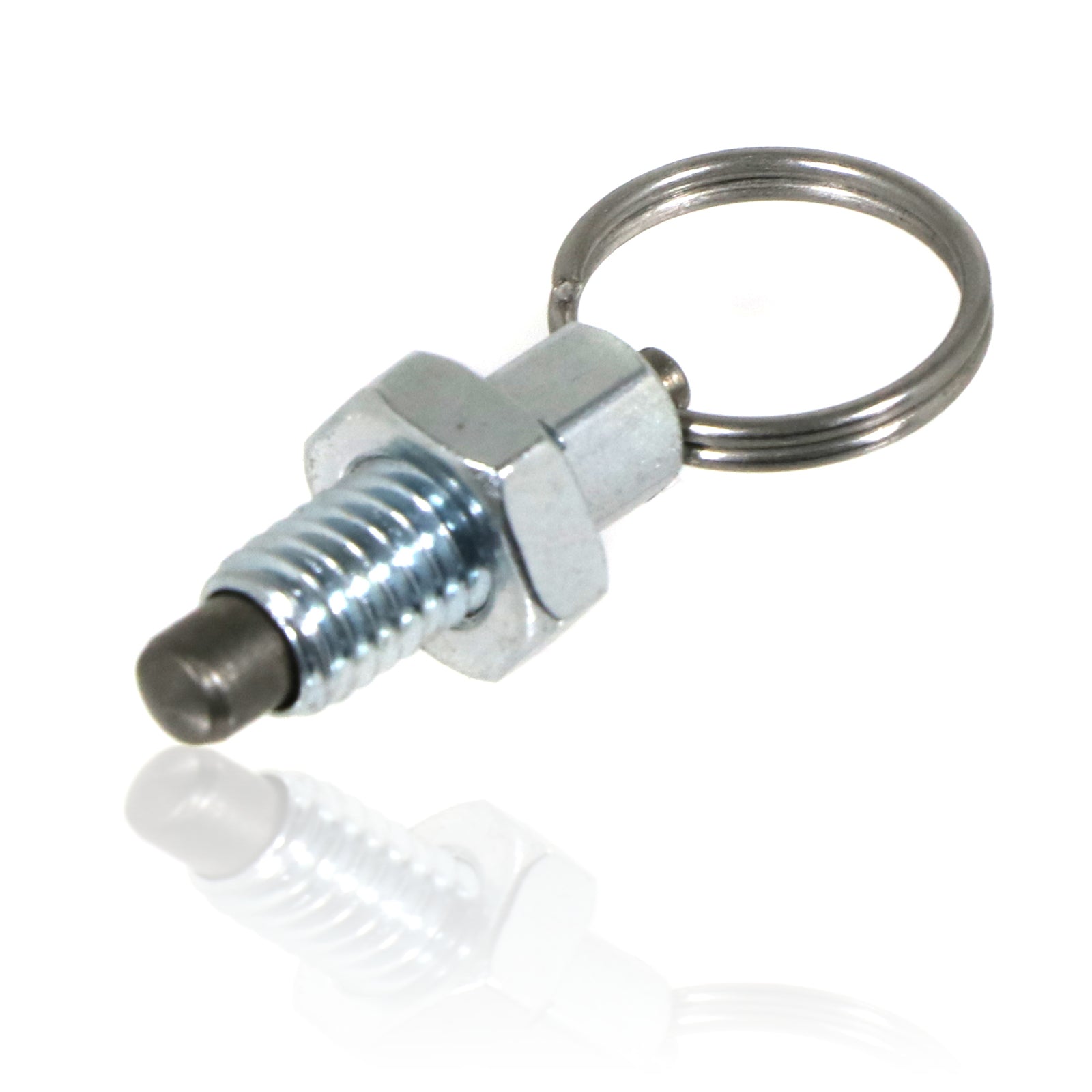

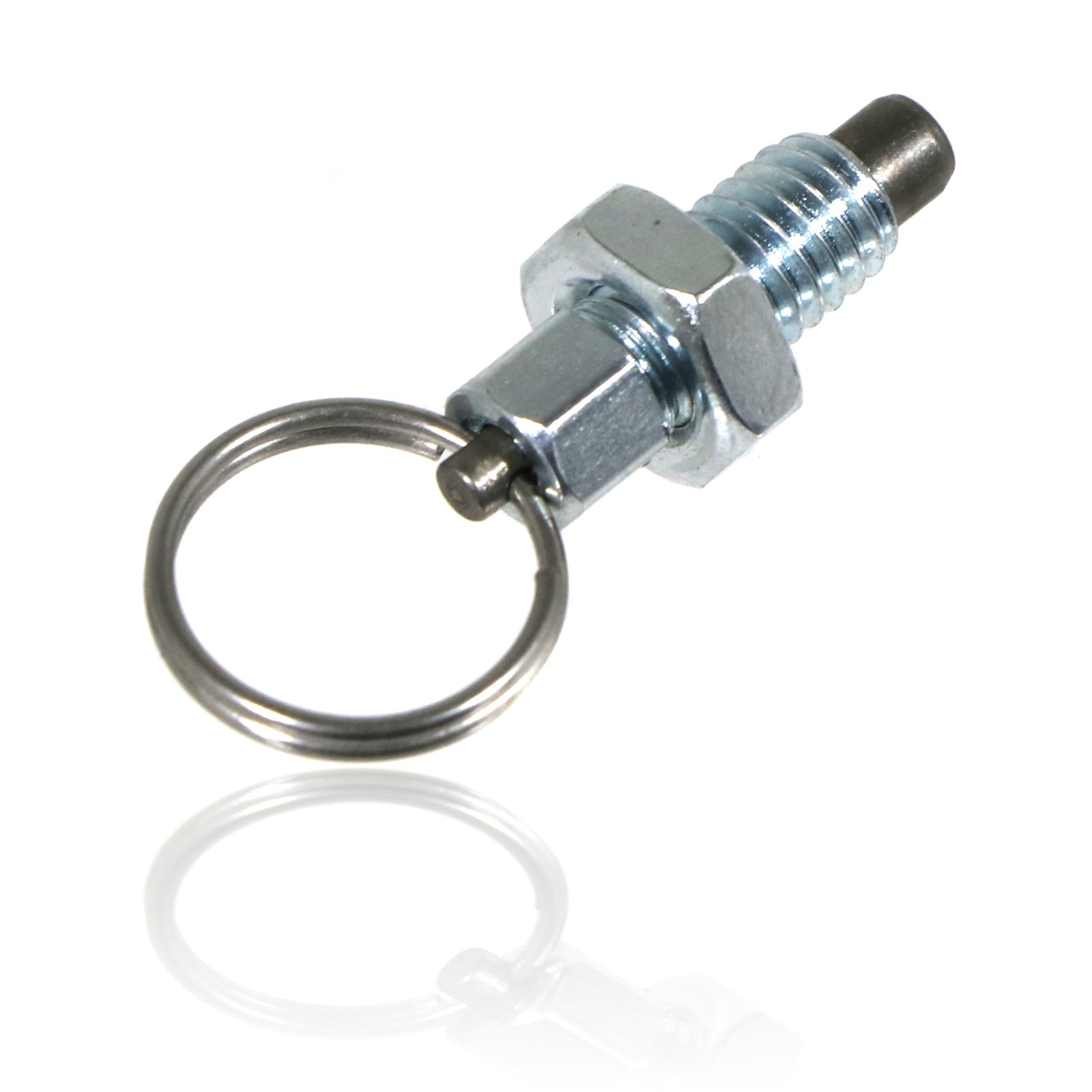

M6 index plunger features a stainless steel spring loaded locating pin enclosed in a zinc plated steel housing. The lift ring provides a convenient way to retract the plunger pin and are typically used where high precision and a locking mechanism are not required. A locking nut is included as standard.
Indexing plungers are used in machine and fixture applications to lock items in place, especially when indexing a range of motion or a series of positions. A typical indexing plunger features a knob or ring attached to a spring loaded pin. When the knob is pulled, the pin is retracted, allowing for free movement.
Zinc plated steel housing with stainless steel pin

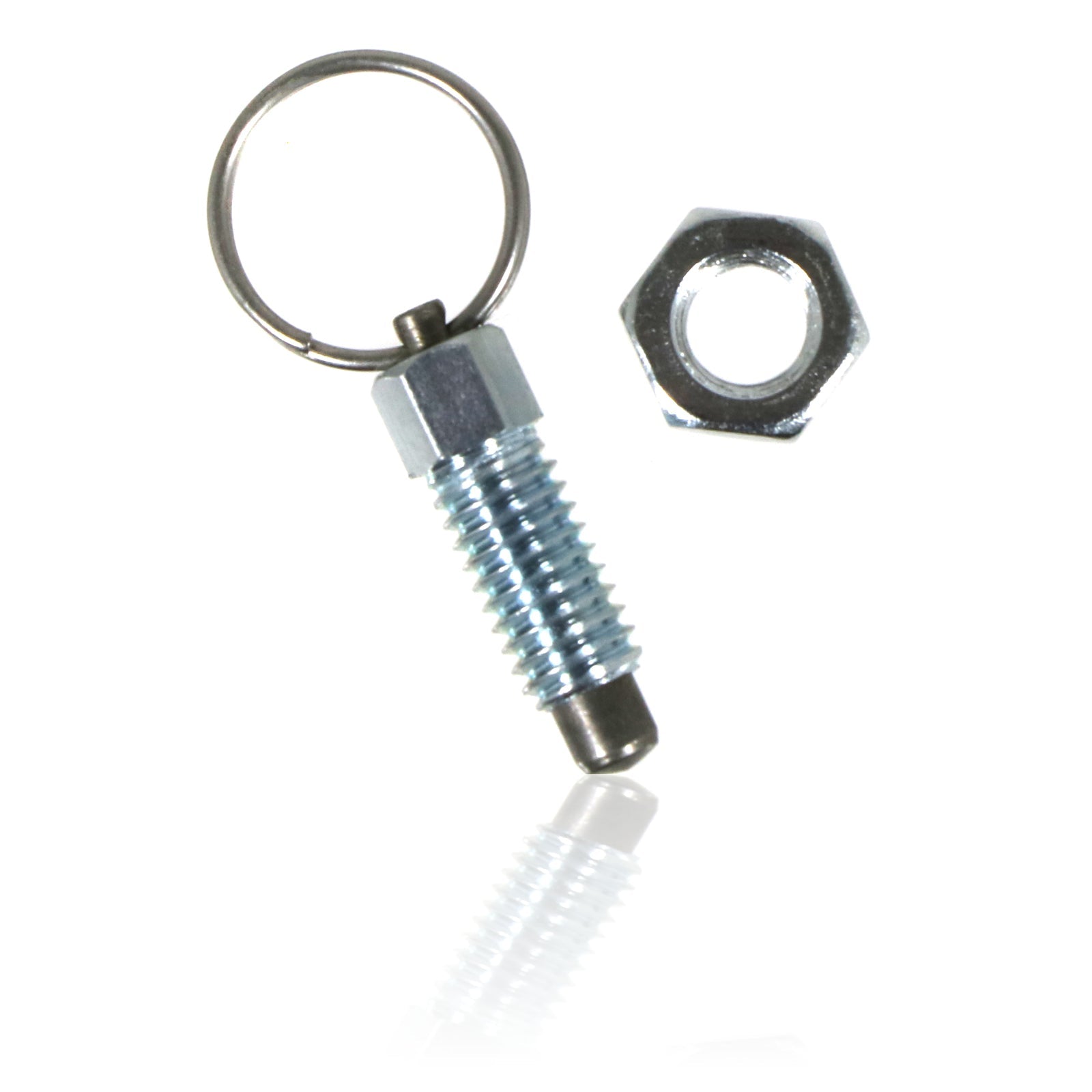

Comes as standard with lift ring and locking nut

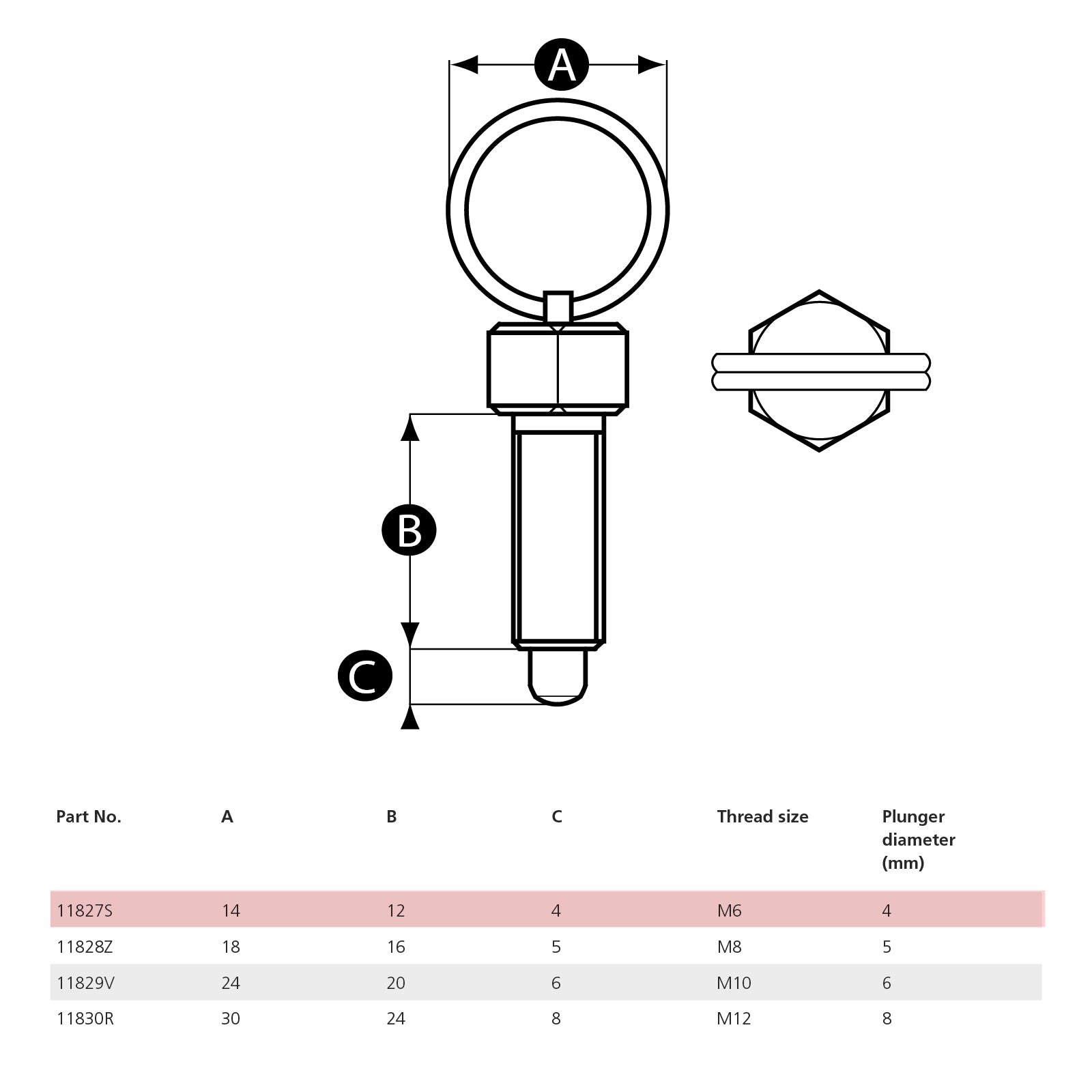

12mm thread length
14mm ring diameter
Positioning tools and jigs
