Description

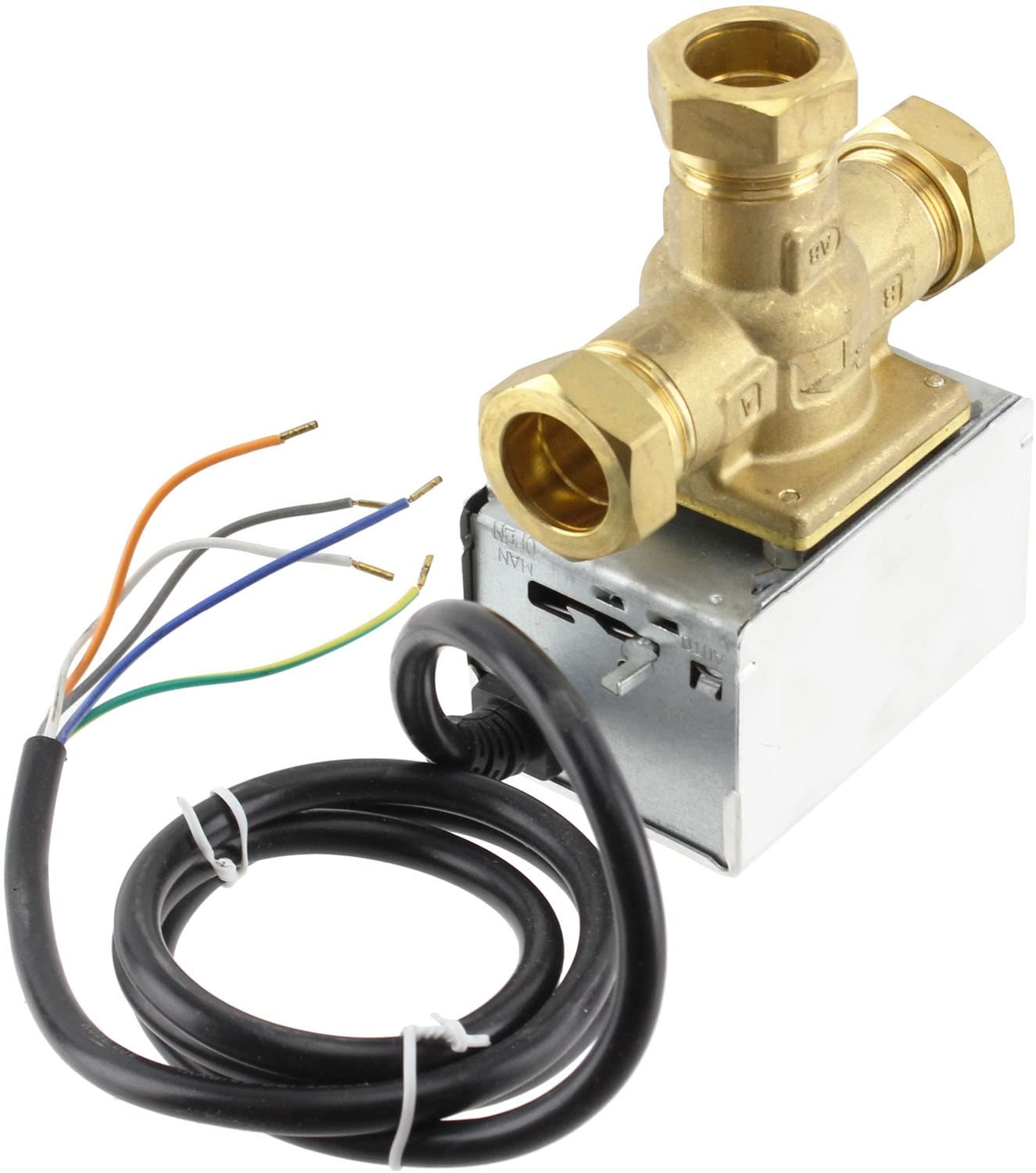

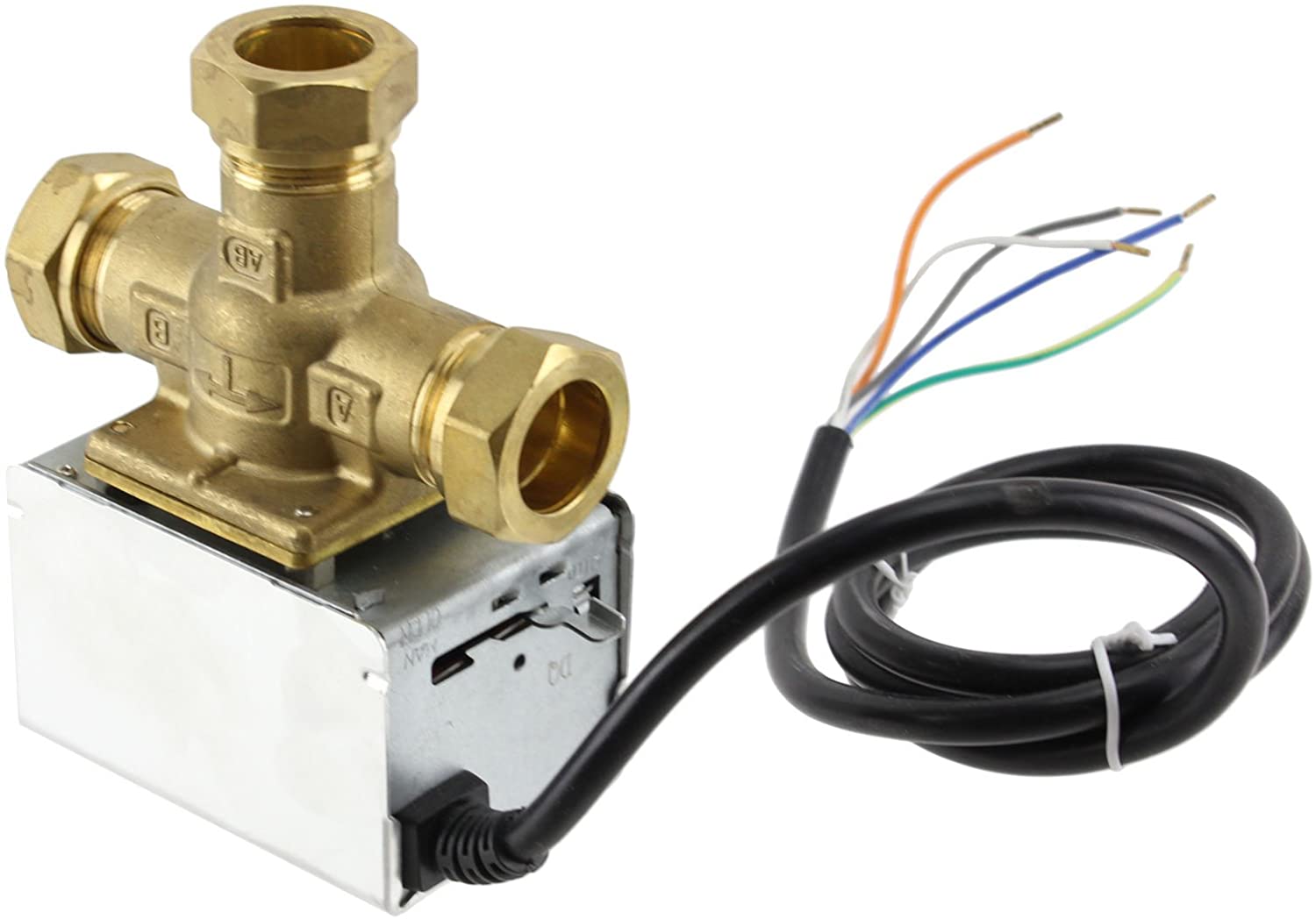

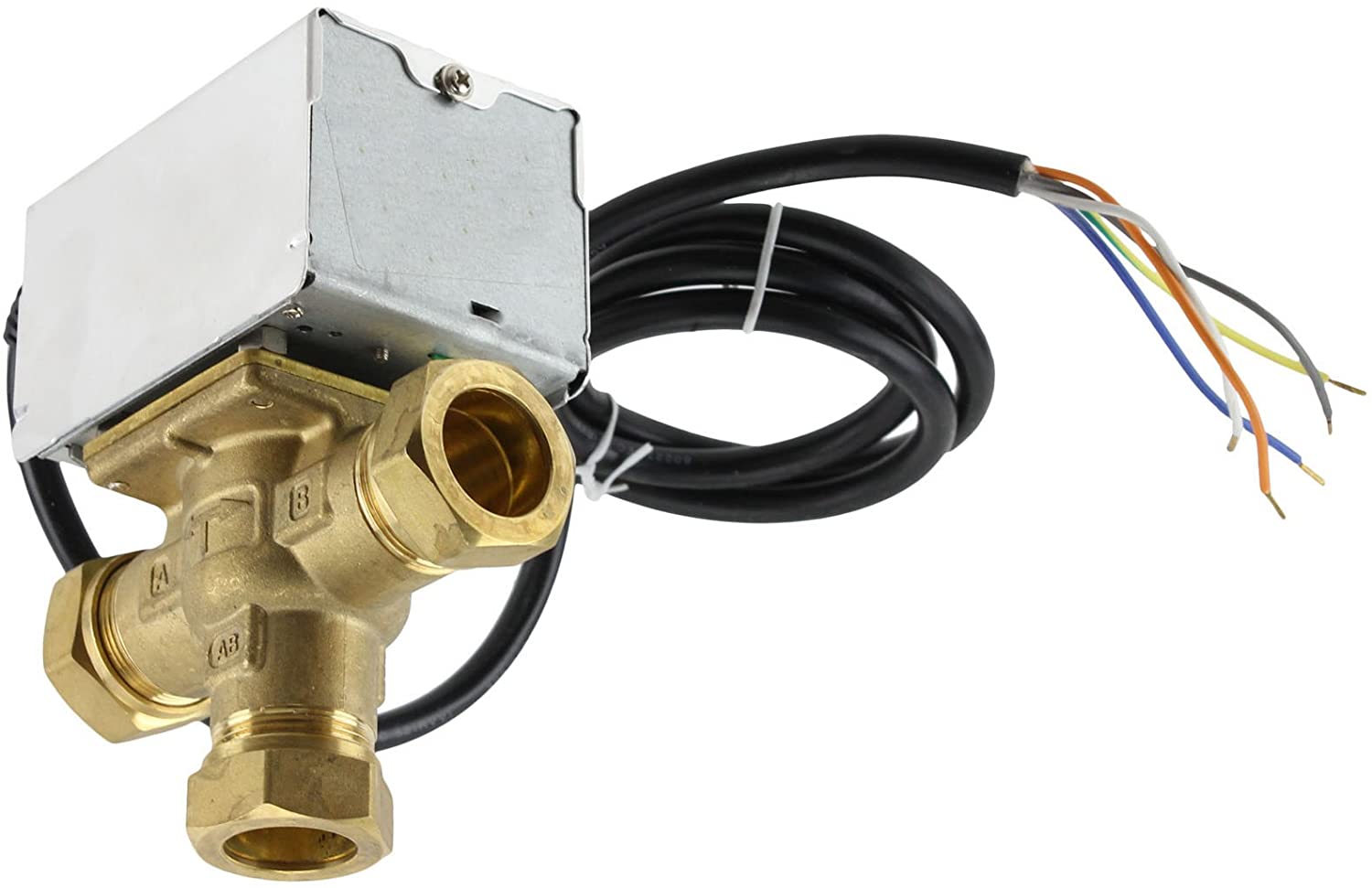

TOWER Inline 22mm Central Heating 3 Port Mid-Position Valve
Brand new genuine original replacement 3 port mid position valve for your central heating or hot water system. These valves have a replaceable actuator head, which can be exchanged without needing to drain-down the system.
Specifications:
Synchronous motor drive / spring return action
1m 5-core flex
Industry standard flex colours: white; blue; grey; orange; green/yellow
Auxiliary switch
Switch rating 3A resistive
Integrated manual lever for commissioning purposes
Supply 230V 50Hz / power consumption 6W
Operating temperature range: +5 to 88 C
Maximum differential pressure 1 Bar
Maximum static pressure 10.0 Bar
Maximum fluid temperature 100 C
Replacement for: Honeywell V4073A, V4073A1039, Sunvic SDV2211 Siemens CMV322 ACL MA1/679-3
Manufacturers names & numbers are used for reference purposes only - These parts are in no way associated with the initial manufacturers parts.
